Counterbore Features & Types for CNC Precision

Have you ever looked at a product extremely closely and wondered how the bolts are flat on the surface? That smooth, flush finish isn't coincidental — it's achieved thanks to a small but efficient feature called a counterbore.

Counterbores often fall out of sight, but they play an important role in the strength, look, and functioning of most components. From a robot arm to an engine in a boat or a medical device, counterbores secure fasteners in position and hidden from view. That translates into fewer snags, nicer lines, and stronger assemblies.

Here in this guide, we will walk you through all that you should know — from what a counterbore is and why you need it, through to types, design requirements, and how we manufacture them with care and precision.

Let’s get started.

What Is a Counterbore? A Closer Look at This Precision Feature

It is a basic yet essential detail on many mechanical parts. Think of it as a shallow, flat-bottomed hole that's been positioned above a regular hole. Its function? To provide the head of a bolt or screw a place to sit even with — or below — the surface of the item.

Here's a more elaborate description: press a coin into clay. The coin forms a round, flat bottom that fits nicely. That's what this feature does to bolts. It gives the fastener head a tidy place to rest inside the part instead of sticking out.

It is easy to confuse it with a countersink or a spotface, so let's define them:

• Counterbore: Wide, flat-bottomed hole with a bolt or screw head level. Wonderful to use on socket head cap screws or hex bolts.

• Countersink: Cone-shaped hole that will hold flat-head screws level. Remember the V-shaped holes for V-shaped wood screws.

Spotface: Slight, flat surface put around a hole, usually to give a smooth, flat surface for a washer or bolt to sit on.

So, why use this feature at all? There are a few smart reasons:

• Strength: Seats bolts better, reducing stress and maximizing load distribution.

• Alignment: Holds fasteners in proper position, especially in multi-part assemblies.

• Aesthetics: Clean, professional-looking parts with flush fasteners. No snagging edges or bulky bolt heads.

Design Elements That Create a High-Performance Counterbore

Not all fastener recesses are built alike. A high-performance counterbore is carefully designed to meet specific technical demands — from fastener fit to machining efficiency. When producing a prototype or building for production, the design features you put into your parts can make or break performance.

Default Design Features: Pilot, Shoulder, Cutting Edge
A typical tool for this feature includes three primary elements:

• Pilot: The lead section of the tool that maintains alignment on the existing hole. It will stop the tool from drifting and provide concentricity.

• Shoulder: The surface the bolt or screw head sits on. It must be level and free of any debris for a snug, flush fit.

• Cutting edge: This is the one actually doing the job — cutting a smooth, accurate recess for your fastener.

These properties must be carefully balanced in order to create results that are precise and consistent, especially in high-tolerance applications.

Surface Finish and Tolerances for High-Precision Parts

In medical, robotics, or marine applications, there is limited space for error. Features in these applications generally must be maintained to close tolerances — sometimes as close as ±0.02 mm.

A smooth surface finish is also important. A non-uniform or rough surface can lead to misalignment, fastening, or premature wear. At 91mns Tech, we use multi-axis CNC machining and advanced measuring equipment to match your exact specifications.

Tip: At 91mns Tech, we machine these features to close tolerances with multi-axis CNC machining for consistent depth and concentricity.

Pilot vs. Non-Pilot Options: When to Use Each

• Pilot versions are best for precision work. They keep the tool in alignment and reduce runout, which is critical in deep holes or multi-part assemblies.

• Non-pilot styles are faster and more versatile to use, especially in stock material where minor misalignment won't be a concern.

Material Matters: HSS, Carbide, and Coated Tools

The material of your tool influences its performance and lifespan:

• High-Speed Steel (HSS): Low-cost and all-around. Best for soft through medium materials like plastics and aluminum.

• Carbide: Stronger and wear-resistant. Best for hard machining and hard materials like stainless steel.

• Coated Tools: Enhance durability and performance, especially for high-volume production.

We select the right tooling material for your use in applications like injection molding or sheet metal fabrication, where post-machining is often required.

Coatings To Extend Tool Life and Improve Finish

Tool coatings are an extra layer of performance:

• TiN (Titanium Nitride): Very good general purpose; reduces friction and wear.

• TiCN (Titanium Carbo-Nitride): Better wear resistance than TiN; particularly suited to stainless steel.

• TiAlN (Titanium Aluminum Nitride): Excellent heat resistance; ideal for dry cutting at high speeds.

Utilizing the correct coating improves tool life, finish, and productivity, especially for die casting or high-temperature applications.

Special Features for Special Fasteners or Material

Sometimes standard tools just won't work. If your application requires:

• Oversized or specially configured fasteners

• Sensitive materials that demand soft machining

• Unusual geometries that call for special pilot sizes

…then the answer is a custom one.

We specialize in rapid prototyping and custom tooling at 91mns Tech. Our engineers can create counterbores to your exact part drawings, even unique features like offset holes or asymmetrical depth.

Product Categories: Off-the-Shelf to Custom Tooling

One size fits all is never the case when dealing with fastener recesses. Different kinds of tools exist for different applications — from simple, off-the-shelf pieces to extremely specialized tools made for a specific purpose. The right choice is essential for tight tolerances, uniform finishes, and reliable fastener fits.

At 91mns Tech, we guide clients towards the appropriate decision for their CNC processes, whether producing a prototype or moving towards low-volume production. If you're unsure which option suits your project best, our article on the selection of machining tools for CNC machine operation can help you better understand tool compatibility and performance.

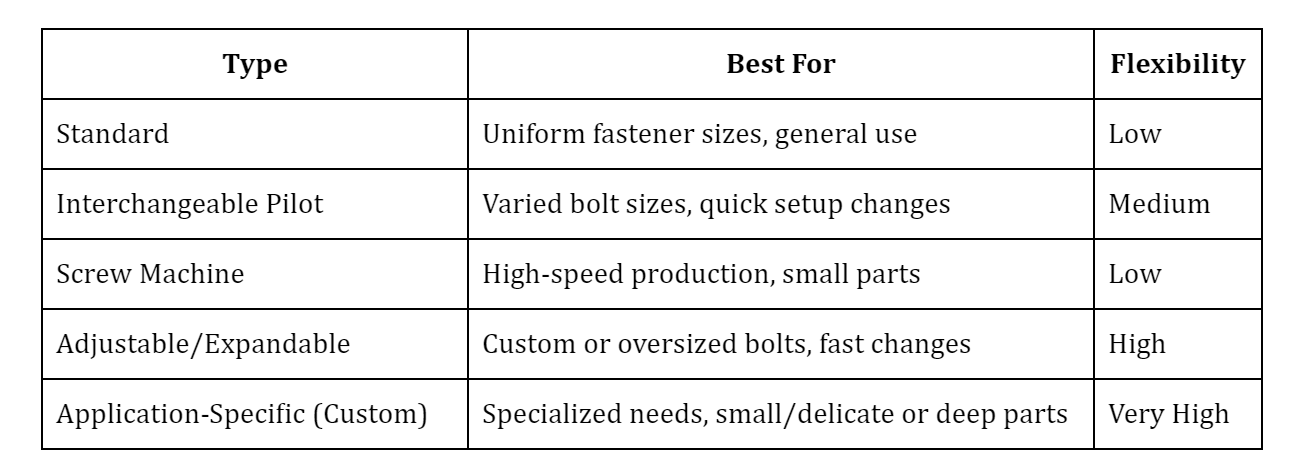

The following is a breakdown of the most common types:

1. Standard

These are the most universal and best suited for general applications. They feature a fixed pilot diameter and are useful when you're working with equal fastener sizes and materials.

Best for: repetitive operations with equal holes — well-suited for aluminum and plastic parts.

2. Interchangeable Pilot

They allow you to interchange the pilot to fit different hole diameters. That flexibility makes them cost-effective in situations where there are slightly different bolt sizes part to part.

Recommended for: Low-volume production, test prototyping, or assemblies with mixed fastener types.

3. Screw Machine

These compact tools are used for screw machines or computerized turning centers. They often drill and create the recess in one step, which saves time.

Most ideal for: High-speed production, small pieces, and applications where cycle time matters.

4. Adjustable/Expandable

Need to change the diameter without switching tools? Adjustable units are the solution. They're ideal when working with non-standard fasteners or when there's a time limit.

Most ideal for: Special jobs, low-volume runs, or when working with unconventional fastener heads.

5. Application-Specific Designs

Some tools are made for a particular use, like micro versions for electronics or deep cavity versions for heavy material. These will often require special tooling or detailed CNC programming.

Well suited for:

• Small parts (wearables, sensors)

• Deep bolt seating (marine, heavy machinery)

• High-tolerance assemblies where tolerance is critical

How This Feature Is Used in Different Manufacturing Processes

This machining detail isn’t limited to one process. It’s used across many manufacturing methods — from CNC machining to 3D printing. The function is simple but essential: to create solid, safe connections between parts.

Let’s take a closer look at how this feature appears across different processes.

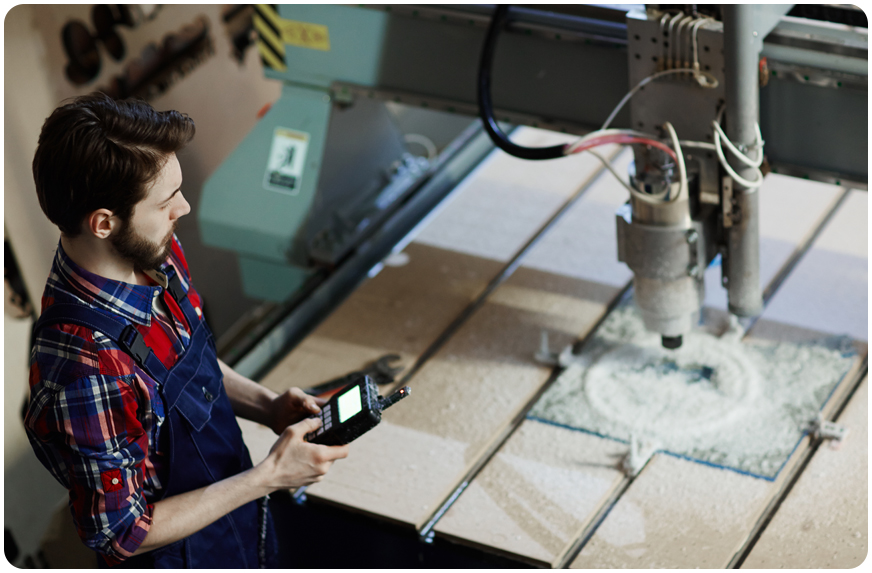

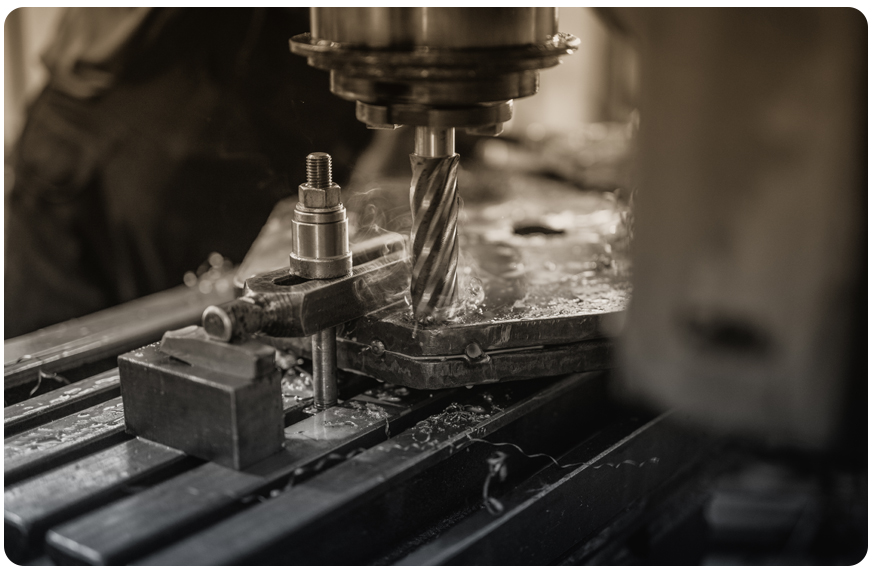

In CNC Machining

CNC machining is where they are found to be used most often. They're drilled into parts to hold bolts, dowel pins, or bearings.

They are flat on the bottom of these holes. This enables the bolt head to be flat on the surface. It also improves strength and appearance.

In Injection Molding

In injection molding, the recess can be built into the mold itself. But sometimes, that’s not accurate enough.

If closer fits are needed, we add it after molding — a method called post-machining.

This technique is especially useful for metal inserts in plastic components or bolted parts like electronics and handheld equipment.

In Sheet Metal Fabrication

Shallow versions are common in sheet metal work. You’ll see them inside folded mounting holes, casings, or brackets.

They help bolts sit flat and avoid protruding or rubbing against other components. Small ones also assist in alignment and simplify assembly.

In Vacuum Casting or Die Casting

For these processes, the detail is typically added after the part is formed. It’s milled or drilled during the final stages.

This improves seating for fasteners and boosts part strength. It's a go-to for high-stress applications like marine parts, light housings, or impact tools.

In 3D Printing

Some 3D printers can include this detail during the print itself, but accuracy can vary — especially in coarse or flexible materials.

That’s why we often use light CNC post-machining. It ensures cleaner, more precise results.

This not only improves the bolt fit but also enhances both aesthetics and durability.

A Note on Structural Integrity

This feature does more than improve fit — it also influences flaw detection.

According to a report by the IAEA, poor machining can lead to false positives during ultrasonic testing. A clean, precise result allows inspectors to detect real flaws and avoid errors.

That’s crucial in critical-use components where accuracy and safety can’t be compromised.

Picking the Right Tool Feature: What You Need to Know

Choosing the right recess or seat for your fastener is more important than it may seem. It affects part performance, assembly ease, and overall dependability. Whether creating a prototype or a production batch, the right choice can save time, money, and frustration.

The following are the most critical factors in making your selection:

Work Material

The work material of the part determines which cutting tool you should use.

Soft materials like plastic and aluminum are easy to cut. Standard high-speed steel (HSS) tools will usually be okay. To cut more difficult materials like stainless steel or tool steel, employ harder substitutes like carbide or coated tools.

Using the proper material ensures cleaner cuts, longer tool life, and more uniform results.

Desired Fit and Tolerance

Think about how close a flush fit the fastener should be.

Accurate fits are especially important in robotics, medical equipment, and marine components. For these applications, tolerances of as little as ±0.02 mm can be required. A loose fit can compromise load distribution, alignment, or appearance.

At 91mns Tech, we obtain precise tolerances with advanced metrology equipment like Zeiss CMMs, 2.5D measuring machines, and ceramic gauge pins.

Depth and Diameter Requirements

The recess must be deep and wide enough to hold the fastener head—but not overly so. If it’s too shallow, the fastener sticks out. Too deep, and it may weaken surrounding material or cause misalignment.

Also consider material thickness. In thinner parts like sheet metal, shallower features are preferred to prevent warping or cracks.

Fastener Head Shape

Fasteners come in many shapes — hex bolts, socket cap screws, flat-head screws, etc. Each requires a specific profile for proper seating. A mismatch can result in poor fit, visible gaps, or uneven stress distribution.

For unique or non-standard fasteners, a custom-machined feature may be necessary to ensure proper alignment and holding strength.

Quantity and Budget

Production volume plays a big role in tool selection.

• For one-off prototypes, you generally can manage with standard tools arranged manually.

• For volume production, tool durability and reproducibility become more important.

That's where optimized feeds/speeds and coated tools reduce overall cost per part and improve consistency.

Wrapping Up

These small design features can have a big impact. They ensure fasteners sit flush, improve part strength, and give components a clean, professional look. Whether you're working with metal, plastic, or 3D-printed parts, precision machining adds real value.

At 91mns Tech, we understand the details that go into high-performance manufacturing. From CNC machining to injection molding and beyond, we deliver features that meet tight tolerances and high standards — every time.

Get in touch to start your custom project today.
