The Ultimate Guide to Custom CNC Machining

Have you ever held a part in your hand and thought, "if only this were a few millimeters shorter" or "if only this were made from a stronger material"? Off-the-shelf components often force engineers and product designers into compromises. But what if you didn't have to compromise? This is where the world of custom CNC machining opens up a universe of possibilities, transforming your exact digital designs into tangible, high-precision parts. This process is the backbone of modern innovation, from aerospace exploration to life-saving medical devices.

In this guide, we'll pull back the curtain on this transformative technology. We'll explore what CNC machining is, how it works, the different techniques available, and how to choose the perfect material for your project. By the end, you'll understand why partnering with a specialist in custom CNC parts is the key to unlocking unparalleled quality and performance.

What Exactly Is CNC Machining, and How Does It Work?

Think of a master sculptor who can carve any shape with incredible speed and flawless accuracy, over and over again. Now, imagine that sculptor is a robot guided by a computer program. That's the essence of CNC (computer numerical control) machining. It’s a subtractive manufacturing process, which means it starts with a solid block of material (a "blank") and systematically carves away material to create a finished part.

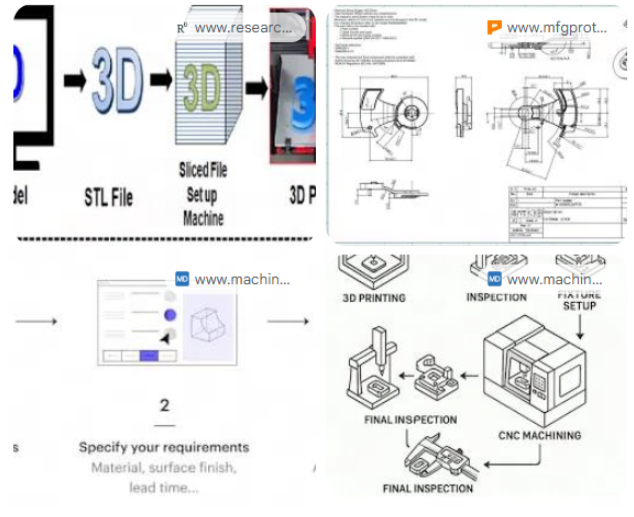

The process is a seamless blend of digital design and physical execution:

1. CAD Model Creation: First, engineers create a 2D or 3D digital model of the part using CAD (computer-aided design) software. This file is the blueprint.

2. CAM Programming: The CAD file is then loaded into CAM (computer-aided manufacturing) software. The CAM program translates the model into a set of instructions, known as G-code. This G-code tells the CNC machine exactly where to move, how fast to go, and which tools to use.

3. Machine Setup: A skilled technician secures the material block onto the machine and loads the necessary cutting tools (like drills, mills, and lathes) into the machine's magazine.

4. Execution: The operator runs the G-code program. The CNC machine then executes the instructions with robotic precision, cutting, drilling, and shaping the material until the final custom machined parts emerge, perfectly matching the original digital design.

The Core Capabilities: Types of Custom CNC Machining Services

While "CNC machining" is a broad term, it encompasses several distinct processes, each suited for creating different types of geometries. Understanding these capabilities helps you choose the right approach for your project.

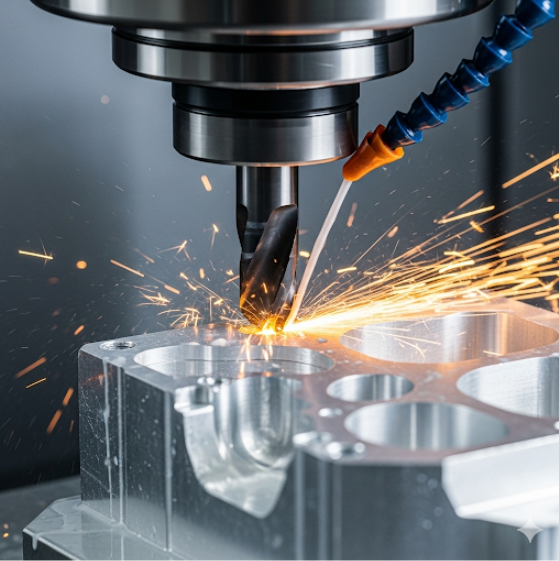

Custom CNC Milling: Precision in Every Dimension

In CNC milling, a rotating, multi-pointed cutting tool is used to remove material from a stationary workpiece. The machine can move the tool and the workpiece along multiple axes to create complex shapes, slots, holes, and surface finishes.

• 3-Axis Milling: The most common type, where the cutting tool moves along the X, Y, and Z axes. It's ideal for simpler parts.

• 5-Axis Milling: This advanced method allows the tool and workpiece to be moved and rotated simultaneously across five axes. It enables the creation of incredibly complex and intricate geometries in a single setup, which is crucial for aerospace and medical components. This is the pinnacle of custom cnc milling.

CNC Turning: The Art of Rotational Perfection

In contrast to milling, CNC turning involves rotating the workpiece at high speed while a stationary cutting tool shaves away material. This process is performed on a CNC lathe and is perfect for creating cylindrical or conical parts with extreme precision. Think of shafts, pins, rods, and complex rotational components. Many cnc turning parts are essential components in engines and machinery.

Choosing the Right Material: The Foundation of Your Custom Machined Parts

The performance of your final part is only as good as the material it's made from. Custom CNC technology is incredibly versatile, capable of working with a vast array of metals and plastics. The choice depends entirely on your application's requirements, such as strength, weight, heat resistance, chemical corrosion, and cost.

Common Metals:

• Aluminum (e.g., 6061, 7075): Lightweight, excellent strength-to-weight ratio, and naturally corrosion-resistant. It's a popular choice for everything from automotive brackets to electronics housings.

• Stainless Steel (e.g., 304, 316L): Known for its exceptional strength, durability, and superior corrosion resistance, making it ideal for medical instruments and food-grade equipment.

• Titanium: Offers an unmatched combination of high strength and low weight, along with excellent biocompatibility. It's a go-to for aerospace components and medical implants.

• Brass: Easy to machine and offers low friction, making it perfect for fittings, bushings, and electrical connectors.

High-Performance Plastics:

• ABS: A tough and affordable plastic, great for prototyping and general-purpose parts.

• Polycarbonate: Offers incredible impact strength and temperature resistance.

• PEEK: A high-performance polymer that can withstand harsh chemical and thermal environments, often used as a metal replacement.

For a detailed comparison of material properties, an engineering database can be an invaluable resource.

The Unmistakable Advantages of Custom CNC Machining

Why choose CNC custom machining over other manufacturing methods like casting or 3D printing? The benefits are clear, especially when precision and quality are non-negotiable.

1. Unmatched Precision and Repeatability: CNC machines can achieve incredibly tight tolerances (as fine as ±0.001 inches), ensuring that every part, from the first to the thousandth, is virtually identical.

2. Material Versatility: You are not limited in your material choices. The process works with production-grade metals and plastics, so your prototype can be made from the same material as your final product.

3. Speed and Efficiency: Once programmed, CNC machines can run 24/7 with minimal supervision. This makes it a highly efficient solution for both rapid prototyping and full-scale production runs.

4. Complex Geometries: Advanced multi-axis machines can produce features that would be impossible to create with manual methods, giving designers immense freedom.

You can learn more about our advanced custom cnc machining services to see how these benefits apply in practice.

Real-World Applications: Where Custom CNC Parts Make a Difference

The impact of custom CNC machining is felt across nearly every major industry. Its ability to deliver strength, precision, and reliability makes it indispensable for critical applications.

• Aerospace: From turbine blades to structural brackets, aerospace components demand lightweight materials and absolute precision to ensure safety and performance.

• Medical: Surgical tools, custom orthopedic implants, and components for diagnostic equipment must be made from biocompatible materials with perfect surface finishes.

• Automotive: High-performance engine components, suspension parts, and custom fixtures are machined for strength and durability.

• Electronics: CNC is used to create custom aluminum housings, heat sinks, and connectors that protect sensitive electronics and manage heat.

The specific needs of these industries, particularly aerospace, have driven the development of advanced techniques like 5-axis machining.

Conclusion: Your Partner in Precision Manufacturing

In a world that demands innovation, settling for "almost right" is no longer an option. Custom CNC machining provides the precision, flexibility, and quality needed to turn ambitious ideas into reality. From selecting the right material to employing advanced techniques like 5-axis milling, the process ensures your parts meet the most stringent specifications. By choosing a knowledgeable and experienced manufacturing partner, you gain more than just a supplier; you gain an ally dedicated to your project's success.

Ready to move from blueprint to a perfectly finished part? Contact us today for a free quote and let's bring your designs to life.
