The Metal Punching Process: A Complete Guide

Have you ever wondered how the intricate vents on your computer case or the precise mounting brackets in your car are made? These everyday objects often start as simple, flat sheets of metal. The magic lies in transforming them with speed and incredible accuracy. This transformation is frequently the result of a powerful and efficient manufacturing process: metal punching. While it might sound straightforward, this technique is a cornerstone of modern industry, responsible for creating a vast array of components we rely on daily.

In this guide, we'll pull back the curtain on the world of sheet metal punching. We'll explore exactly what it is, walk through the step-by-step process, and look at the sophisticated machinery that makes it all possible. Whether you're an engineer designing your next product, a procurement manager sourcing a reliable fabrication partner, or simply curious about how things are made, this deep dive will give you a clear understanding of why this technique remains a vital player in manufacturing.

3

What Exactly is Metal Punching? An Overview

At its core, metal punching is a fabrication process that uses a specialized tool—a punch and a die—to create holes, shapes, or indentations in a metal sheet. Think of it as a highly advanced and powerful version of a standard office hole puncher, but instead of paper, it cuts through materials like steel, aluminum, and brass with immense force and precision.

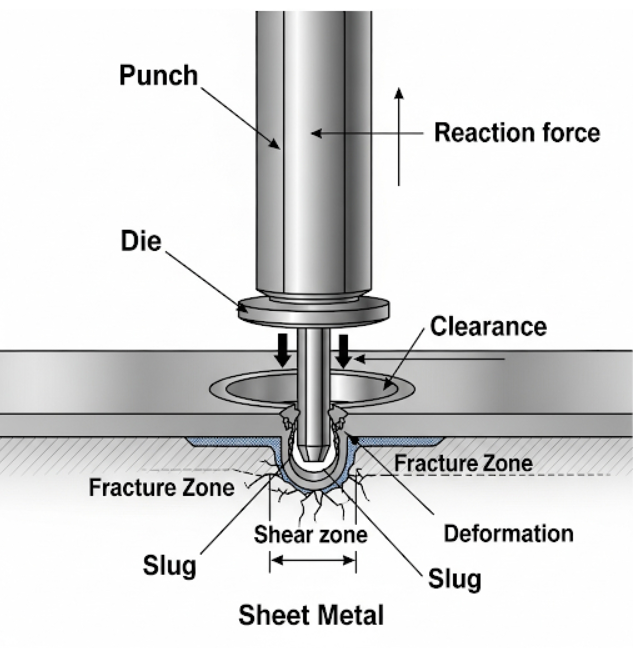

The process involves placing a sheet of metal between the punch (the cutting tool) and the die (a hardened block with a corresponding opening). A press then forces the punch through the metal and into the die. The piece of metal that is removed, known as a "slug," is ejected, leaving a clean, accurately sized hole or feature in the workpiece. This can be repeated hundreds or even thousands of times per minute to create complex patterns or multiple identical parts.

The Heart of the Craft: The Sheet Metal Punching Process Explained

While the concept is simple, the professional execution of punching a metal sheet requires a systematic and precise workflow to ensure quality and efficiency. Here’s how we turn a design into a finished component:

1. Design and Programming: Every project begins with a digital design, typically from a CAD (computer-aided design) file. This file is then converted into a set of instructions for a CNC (computer numerical control) punching machine. The program tells the machine exactly where to punch, what tool to use, and in what sequence.

2. Material Selection: The right material is chosen based on the application's requirements, such as strength, corrosion resistance, and weight. We carefully select the appropriate grade and thickness of metal for punching to meet the project's specifications.

3. Machine Setup: The operator loads the correct punch-and-die set into the machine's turret or tool holder. The sheet metal is then securely clamped onto a movable bed that will position it precisely under the tooling for each operation.

4. The Punching Operation: The automated process begins. The CNC controller executes the program, moving the metal sheet into position and activating the press to punch the desired features. This cycle is performed at high speed, creating holes, vents, and contours as programmed.

5. Finishing and Quality Control: After the punching is complete, the part is removed. It may undergo secondary processes like deburring to remove any sharp edges, bending to form it into a 3D shape, or coating for surface protection. Finally, a thorough quality inspection ensures every part meets the exact design tolerances.

The Power Behind the Punch: A Look at Punching Equipment

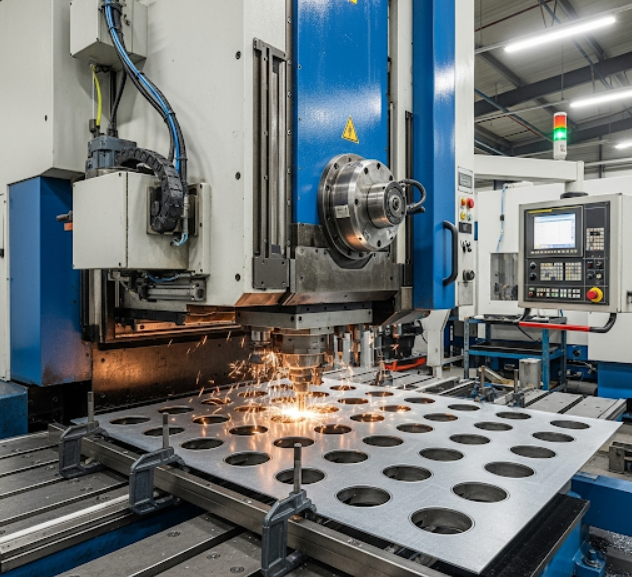

The workhorse of any modern fabrication shop is the CNC turret punch press. This sophisticated machine is engineered for speed, accuracy, and versatility. Its key components include:

• The Press Frame: A robust C-frame or portal-frame structure that houses the punching mechanism and provides the necessary rigidity to handle high punching forces.

• The Turret: A rotating carousel that holds dozens of different punch-and-die sets. The CNC controller can rotate the turret to select the required tool for each specific hole size or shape in seconds, eliminating the need for manual tool changes.

• The Work-Holding System: A set of clamps that grips the punching sheet and moves it along X and Y axes, precisely positioning it for each punch.

• The Punch and Die: These are the cutting tools. The punch is the male component that pushes through the material, while the die is the female component that supports the metal and defines the shape of the hole. They must be perfectly aligned to create a clean cut.

Why Choose Metal Punching? Key Advantages and Features

In a world with various cutting technologies like laser and plasma cutting, metal punching holds its own due to a unique set of advantages, especially for specific types of projects.

• Speed and Efficiency: For parts with a high number of standard-sized holes, nothing beats the speed of a turret punch. It can make hundreds of hits per minute, making it incredibly efficient for high-volume production runs.

• Cost-Effectiveness: The high speed translates directly into lower cycle times and reduced labor costs per part. This makes this manufacturing technique one of the most economical choices for producing large quantities of identical components.

• Versatility: Beyond just round holes, punching can create a wide variety of shapes, including squares, rectangles, and complex contours. Special tools can also perform operations like forming louvers, creating countersinks, or stamping logos, often eliminating the need for a separate process.

• Excellent Accuracy and Repeatability: CNC-controlled systems ensure that every part produced is identical to the last, with tight tolerances maintained throughout the entire production run.

For complex projects requiring specific shapes and tolerances, partnering with experts in custom sheet metal punching is crucial to leveraging these benefits fully.

Where is This Technique Used? A Look at Its Applications

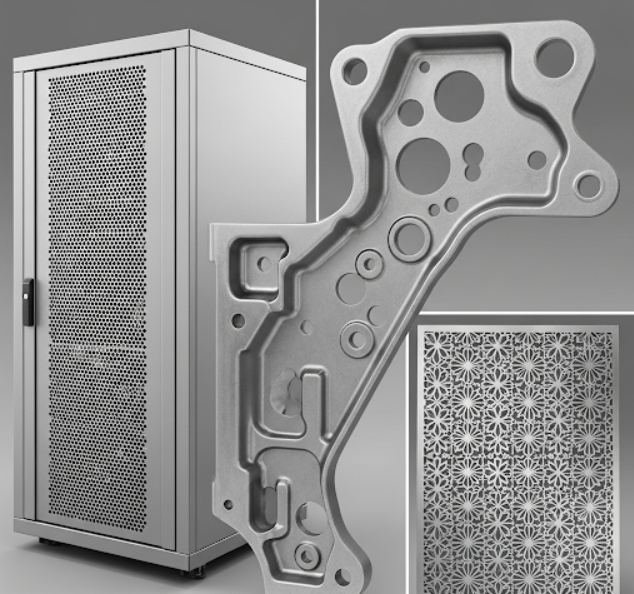

The versatility and efficiency of this fabrication method make it an indispensable process across numerous industries. You can find punched metal components in:

• Electronics: Computer chassis, server racks, and enclosures that require precise holes for mounting components and vents for airflow.

• Automotive: Brackets, support members, and structural components where strength and consistency are paramount.

• HVAC: Ductwork components, grilles, and furnace housings.

• Construction: Structural connectors, gusset plates, and decorative architectural panels.

• Appliances: Panels for washing machines, dryers, and microwave ovens.

The precision involved is governed by industry standards, which you can learn more about from organizations like the Society of Manufacturing Engineers.

Choosing the Right Canvas: Suitable Materials for Punching

This technique can be applied to a wide range of materials, provided they have the right properties for shearing without fracturing. Some of the most common materials include:

• Carbon Steel: Valued for its strength and low cost, it's a popular choice for structural and general-purpose parts.

• Stainless Steel: Offers excellent corrosion resistance, making it ideal for applications in harsh environments or the food industry.

• Aluminum: Lightweight and naturally corrosion-resistant, it is frequently used in aerospace, automotive, and electronics.

• Brass and Copper: Chosen for their electrical conductivity and aesthetic appeal.

The choice of material ultimately depends on the end-use of the component, balancing factors like cost, durability, and specific performance requirements.

The Enduring Impact of the Punching Process

From simple brackets to complex electronic enclosures, the metal punching process is a testament to manufacturing ingenuity. Its ability to deliver speed, precision, and cost-effectiveness makes it an essential tool for bringing innovative ideas to life. By combining time-tested principles with modern CNC technology, it continues to shape the world around us, one precise hole at a time.
