Prototype Manufacturing: A Complete Guide for Innovators

Every groundbreaking product, from the smartphone in your pocket to the life-saving medical devices in hospitals, started as a simple thought—a spark of an idea. But how does that spark transform into a tangible, functional product you can hold, test, and perfect? The bridge between concept and reality is built through a critical process: prototype manufacturing.

If you're an engineer, a product developer, or an entrepreneur, you know that a great idea is only the beginning. Successfully bringing that idea to market requires careful validation, testing, and refinement. This guide will walk you through the essential world of prototyping, from core technologies to material choices, empowering you to make smarter decisions and accelerate your path to innovation.

What is Prototype Manufacturing, Exactly?

At its core, prototype manufacturing is the process of creating a preliminary version or model of a product. This model, or "prototype," is used for testing, evaluation, and demonstration before committing to the high costs and long timelines of mass production.

Think of a chef in a high-end restaurant. Before adding a new dish to the menu, they create several test versions in the kitchen. They taste it, adjust the ingredients, and perfect the presentation. Prototyping is the engineering equivalent of this test kitchen. It’s where you can experiment with your "recipe"—your design—without the risk of serving a flawed final product to thousands of customers. This iterative process of prototype fabrication is fundamental to modern product development.

Why Prototyping Is Not Just a Step, It’s a Core Strategy

Some might see prototyping as an extra expense or a time-consuming detour. However, seasoned innovators understand that it’s one of the most valuable investments you can make. The benefits are substantial and directly impact your bottom line and market success.

• Test and Validate Your Design: Does your part fit with other components? Is it strong enough to withstand real-world forces? A physical prototype provides clear, unambiguous answers to these questions in a way that a digital model cannot.

• Identify Flaws Early: Discovering a design flaw after you’ve invested in expensive production tooling can be a catastrophic financial blow. Prototyping allows you to catch and fix these errors when the cost of change is lowest.

• Secure Funding and Stakeholder Buy-In: A physical prototype is a powerful communication tool. It makes your vision tangible, helping you effectively demonstrate your product to investors, team members, and potential customers.

• Optimize for Manufacturability (DFM): A prototype can reveal that a certain feature is unnecessarily difficult or expensive to produce. This allows you to refine the design for more efficient and cost-effective mass production down the line.

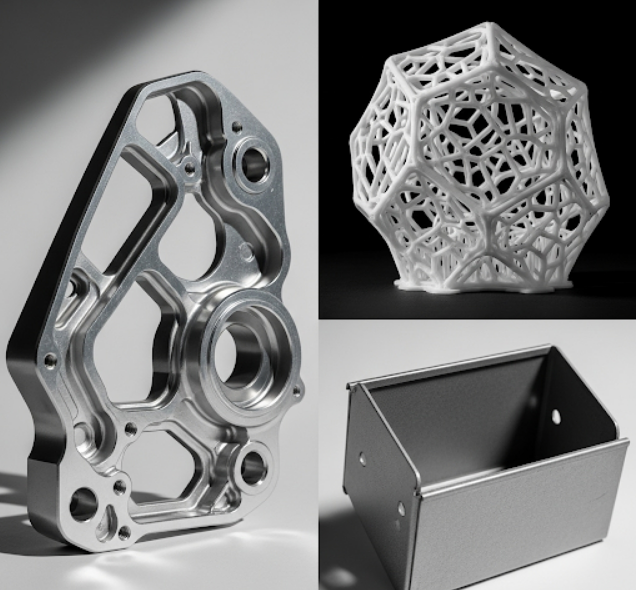

The Core Processes: How Prototypes Are Made

Modern prototype manufacturing leverages a variety of advanced technologies, each with its own strengths. Choosing the right process depends on your required material, complexity, speed, and budget.

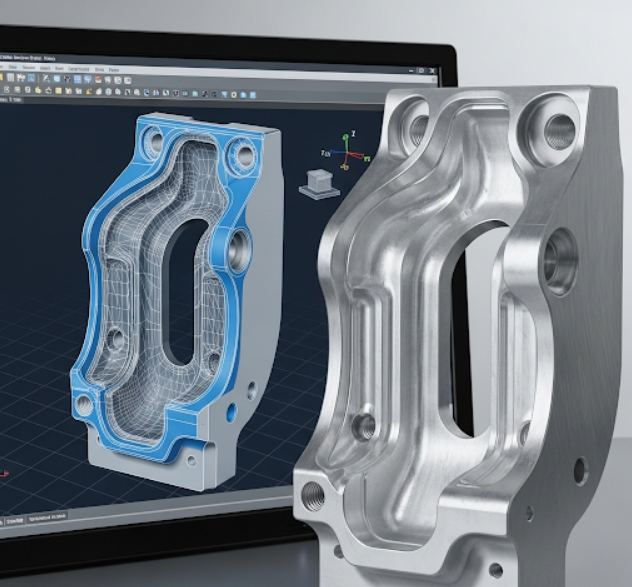

CNC Machining

Short for Computer Numerical Control, CNC machining is a subtractive process. It starts with a solid block of material (like aluminum or plastic) and uses computer-controlled cutting tools to carve away material until the final shape is achieved. Rapid CNC machining is prized for its incredible precision, excellent surface finish, and its ability to work with production-grade materials, making it ideal for functional, high-fidelity prototypes.

For projects requiring unparalleled precision, exploring a professional prototyping service is the best path forward.

3D Printing (Additive Manufacturing)

The opposite of CNC machining, 3D printing is an additive process. It builds a part layer by layer directly from a digital file. Its primary advantages are speed, especially for complex geometries, and the ability to create intricate internal features that would be impossible to machine. It’s perfect for early-stage concept models and form-fit tests.

Sheet Metal Fabrication

This process involves cutting, bending, and assembling sheets of metal to create parts like enclosures, brackets, and chassis. If your final product will be made from sheet metal, creating a prototype using the same fabrication techniques is essential for verifying the design’s integrity and assembly process.

The Stages of Prototyping: From Low to High Fidelity

Prototyping is not a single event but a journey through different stages of refinement. Each stage serves a different purpose and uses a different type of prototype.

1. Low-Fidelity Prototypes: These are rough, basic models often made from simple materials like paper, cardboard, or foam. Their goal is to quickly explore a basic concept, shape, and user interaction without investing significant time or money.

2. Mid-Fidelity (Looks-Like) Prototypes: These models focus on aesthetics and appearance. They have a high-quality surface finish and represent the final product's look and feel, but they typically lack functionality. They are excellent for marketing photography, trade shows, and user feedback on ergonomics.

3. High-Fidelity (Works-Like) Prototypes: This is the most advanced stage. These prototypes are built to be as close to the final product as possible in both appearance and function. They are often made from production-intent materials and are used for rigorous functional testing, certification, and final design validation. This is where prototype parts manufacturing truly shines.

Choosing the Right Materials for Your Prototype

The material you choose is just as important as the manufacturing process. Your choice will be dictated by the prototype's purpose. Is it for visual appeal or for stress testing? Here are a few common options:

• Plastics:

• ABS: Good all-around toughness and impact resistance, similar to LEGO bricks.

• Polycarbonate (PC): Extremely durable and often transparent.

• Nylon (PA): Excellent for parts requiring strength and low friction, like gears.

• Metals:

• Aluminum (e.g., 6061): Lightweight, strong, and easy to machine, making it a favorite for prototype machining.

• Stainless Steel: Offers high strength and excellent corrosion resistance, ideal for medical or harsh-environment prototypes.

When in doubt, consulting comprehensive material guides from industry resources like Thomasnet can provide deeper insights into the specific properties of thousands of available materials.

Where Prototype Manufacturing Drives Innovation

The application of prototyping spans nearly every industry, serving as the engine of progress:

• Aerospace & Automotive: For testing the fit, form, and function of critical components under extreme conditions.

• Medical Devices: To create ergonomic and functionally precise instruments and equipment for FDA validation.

• Consumer Electronics: To perfect the sleek look and feel of new gadgets before they hit the market.

• Industrial Machinery: To ensure the durability and performance of custom machine parts before they are deployed in a factory.

Conclusion: Turn Your Idea into a Reality

In the competitivelandscape of product development, prototype manufacturing is not an option; it is an absolute necessity. It is the most reliable method for mitigating risk, refining design, and accelerating your journey from a simple idea to a market-ready product. By leveraging the right technologies, materials, and expert partners, you can build with confidence, innovate faster, and ultimately achieve greater success.

Whether you're creating your first works-like model or need a series of pre-production parts, a professional prototyping service is your most valuable ally.
