Plastic Moulding: A Complete Guide from Concept to Creation

Look around you. The device you're reading this on, the casing of your car's dashboard, the bottle of water on your desk—they all likely started as tiny pellets of plastic. So, how do these raw materials transform into the complex, durable, and precise products we use every day? The answer lies in a remarkable and versatile manufacturing process: plastic moulding.

If you're an engineer, a product designer, or a purchasing manager, understanding the fundamentals of this technology is not just beneficial; it's essential for creating successful, cost-effective, and high-quality products. In this comprehensive guide, we'll demystify the process, exploring everything from the basic principles to advanced design considerations. Let’s dive in and shape your understanding.

What Is Plastic Moulding, Exactly?

At its core, plastic moulding is a manufacturing technique for producing parts by pouring liquid or pliable raw material into a frame, known as a mold or matrix. The material—in this case, molten thermoplastic or thermosetting polymers—is then allowed to cool and harden, taking on the shape of the mold's cavity.

Think of it like making ice cubes. You pour liquid water (the raw material) into an ice cube tray (the mold). After a while in the freezer (the cooling process), the water solidifies into the exact shape of the tray's compartments. Plastic shaping follows the same fundamental principle, but with far more sophisticated technology, materials, and precision, allowing for the creation of incredibly intricate and robust components.

Exploring the Different Types of Moulding Services

While the core concept is simple, the "plastic moulding" umbrella covers several distinct methods, each suited for different applications, volumes, and complexities. Understanding these types is the first step in selecting the right path for your project.

Here are the most common processes:

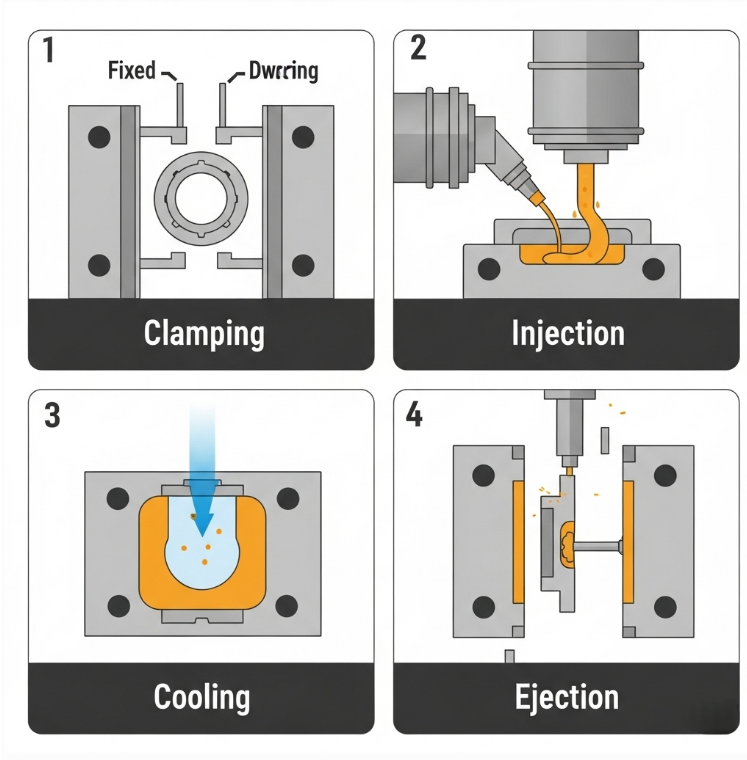

• Injection Molding: This is the most prevalent method for plastic shaping, renowned for its precision and efficiency in high-volume production. In this process, plastic pellets are melted and then injected under high pressure into a custom-made mold. It's the go-to method for creating complex and detailed parts, from tiny medical components to large automotive panels. The high initial cost of the mold is quickly offset by a very low per-unit cost in large-scale injection molding manufacturing.

• Blow Molding: If you've ever held a plastic bottle, you've seen the result of blow molding. This process is ideal for creating hollow objects. It starts with a heated plastic tube (a "parison"), which is placed inside a mold. Air is then blown into the parison, inflating it like a balloon until it presses against the mold walls and takes its shape.

• Extrusion Molding: Unlike the other processes that create distinct parts, extrusion creates long, continuous shapes. Molten plastic is pushed through a die to form products like pipes, window frames, and straws. The shape of the die determines the shape of the final product.

• Rotational Molding (Rotomolding): Need to make something large and hollow, like a kayak or a water storage tank? Rotomolding is the answer. Plastic powder is placed in a large mold, which is then heated and rotated slowly on two axes. The melting plastic evenly coats the inside of the mold, creating a seamless, stress-free part with uniform wall thickness.

• Compression Molding: One of the original molding techniques, compression molding involves placing a pre-heated plastic compound into an open, heated mold cavity. The mold is then closed, and pressure is applied to force the material to fill the cavity. It's often used for strong, durable parts made from thermosetting plastics.

The Clear Advantages of Modern Plastic Moulding Services

Why has this technology become a cornerstone of modern manufacturing? The benefits are compelling, especially for businesses looking to scale production efficiently.

• Cost-Effectiveness at Scale: While there's an upfront investment in tooling (creating the mold), the cost per part becomes incredibly low during mass production. Automation minimizes labor costs and ensures high-speed output.

• Incredible Design Flexibility: The process allows for highly complex geometries that would be difficult or impossible to achieve with other manufacturing methods. Intricate features, thin walls, and custom surface textures are all possible.

• High Repeatability and Precision: Once a mold is perfected, it can produce hundreds of thousands, or even millions, of identical parts. This consistency is crucial for quality control in industries like medical and automotive.

• Wide Range of Material Choices: From flexible and soft to rigid and incredibly strong, there is a vast library of polymers to choose from. This allows you to perfectly match the material's properties (strength, heat resistance, chemical resistance, color) to the product's function.

Choosing the Right Material: The Heart of Your Project

The success of a molded part depends heavily on selecting the right plastic. Each material has a unique profile of properties, costs, and processing requirements. Here are a few of the most common polymers used in the industry:

• Acrylonitrile Butadiene Styrene (ABS): A tough, impact-resistant thermoplastic. Think LEGO bricks, keyboard caps, and power tool housings.

• Polycarbonate (PC): Extremely strong and impact-resistant, with excellent transparency. Used for safety glasses, electronic screens, and reusable water bottles.

• Polypropylene (PP): Lightweight, flexible, and resistant to chemicals and fatigue. Ideal for living hinges, food containers, and automotive parts.

• Polyethylene (PE): The most common plastic in the world, available in various densities. Used for everything from plastic bags (LDPE) to milk jugs (HDPE).

• Nylon (PA): Known for its excellent mechanical strength, heat resistance, and low-friction properties. Perfect for gears, bearings, and other durable mechanical parts.

Moreover, the choice of material carries significant environmental implications. As the manufacturing world shifts towards a circular economy, selecting recyclable or bio-based polymers is becoming a critical consideration. In fact, leading industry reports emphasize that focusing on sustainability not only benefits the planet but also resonates strongly with environmentally conscious consumers and can enhance brand reputation.

Designing for Success: Key Considerations in Plastic Moulding

A great idea is only as good as its execution. To ensure a smooth transition from digital design to physical product, engineers must adhere to design principles specific to the injection molding manufacturing process.

Key considerations include:

• Uniform Wall Thickness: Keeping wall thickness consistent throughout the part prevents issues like sinking, warping, and uneven cooling.

• Draft Angles: Tapering the walls of the part slightly (a draft angle) makes it much easier to eject from the mold without damage. Think of it as the slight slope on the side of a cupcake pan.

• Radii and Corners: Avoiding sharp internal corners by adding rounded edges (fillets) helps plastic flow more smoothly and reduces stress concentrations, making the part stronger.

• Gate and Runner Design: The placement and size of the gate (where plastic enters the mold cavity) are critical for ensuring the mold fills completely and uniformly.

Navigating these technical details requires a deep level of expertise. That’s why partnering with a team that offers expert plastic moulding services can help you optimize your design for manufacturability,saving you significant time and money in the long run.

Real-World Applications Across Industries

The versatility of plastic shaping has made it indispensable across nearly every sector imaginable:

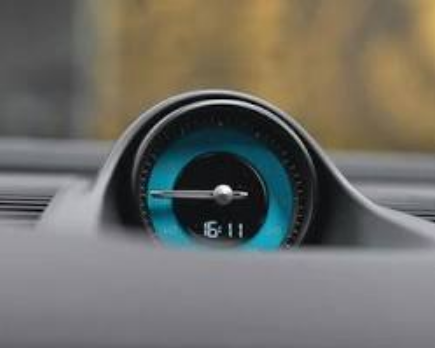

• Automotive: Dashboards, bumpers, interior trim, engine components, and light housings.

• Medical & Healthcare: Syringes, surgical instruments, diagnostic equipment housings, and implants.

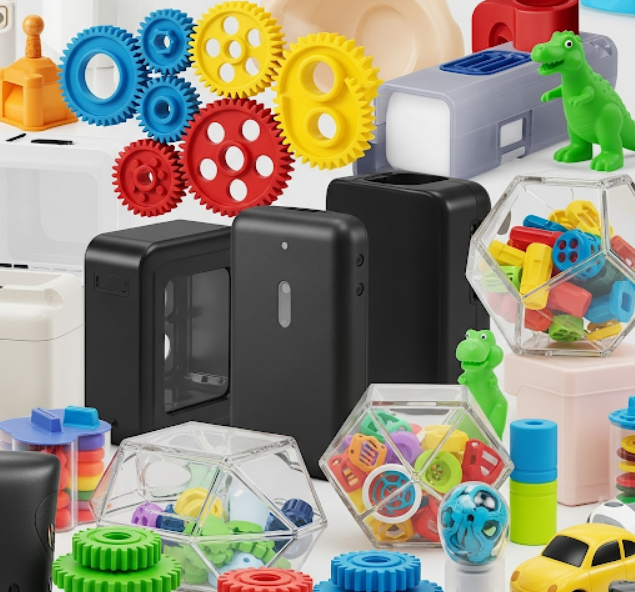

• Consumer Goods: Kitchen appliances, power tool casings, toys, and electronic device enclosures.

• Packaging: Bottles, caps, jars, and containers of all shapes and sizes.

This wide adoption is a testament to the process's ability to deliver reliable, high-quality components for even the most demanding applications. From simple plastic shaping to complex plastic prototype manufacturing, the technology underpins modern life.

Conclusion: Bringing Your Vision to Life with Plastic Moulding

From its simple principles to its complex applications, plastic moulding remains one of the most powerful and efficient manufacturing technologies available today. It is the engine that drives the production of countless items that define our modern world. By understanding the different processes, materials, and design rules, you empower yourself to make informed decisions that will lead to a superior final product.

Whether you are in the early stages of injection molding prototyping or ready for full-scale production, partnering with the right experts is key to success.

Ready to turn your concept into a tangible, high-quality component? Contact our team of experts today to discuss your project and discover how our moulding services can bring your vision to life!
