Milling and Turning: The Dynamic Duo of Precision Machining

Imagine you need a custom metal part. Perhaps it's a robust bracket with precisely drilled holes or a sleek, cylindrical shaft with intricate grooves. How do you transform a raw block of material into this finished, functional component? The answer almost always involves the two foundational processes of modern manufacturing: milling and turning. While these terms are often used together, they represent distinct methods of cutting material, each with its own strengths and ideal applications. Understanding the difference is crucial for anyone involved in designing, sourcing, or manufacturing parts. In this guide, we'll demystify CNC milling and turning services, explore their unique capabilities, and reveal how advanced mill-turn centers combine them for unparalleled efficiency.

Milling vs. Turning: A Tale of Two Motions

At its heart, the difference between milling and turning is beautifully simple. It all comes down to what moves and what stays still.

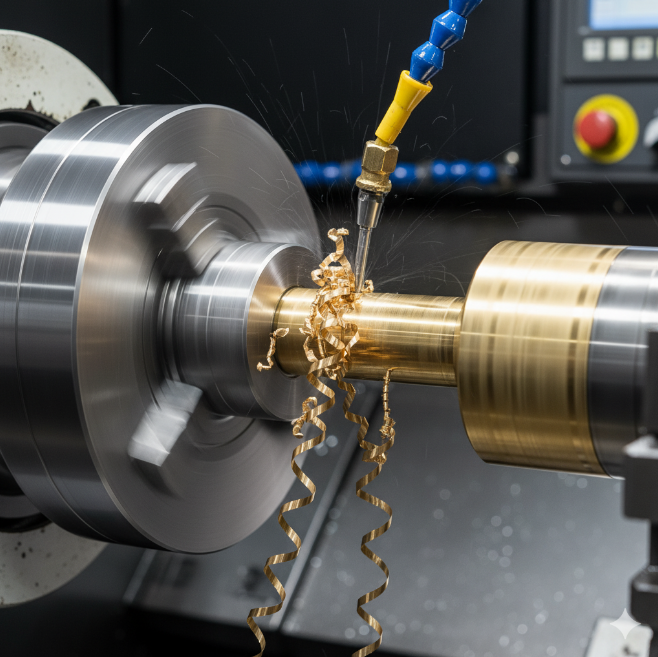

• Turning is the process of rotating the workpiece against a stationary cutting tool. Think of a potter's wheel, where the clay spins, and the potter's hands shape it. In a lathe (the machine used for turning), the raw material—often a rod or bar—is spun at high speed. A single-point cutting tool is then moved along the material's surface to remove excess, creating cylindrical or conical shapes. This is the go-to process for producing parts like shafts, bolts, and pulleys.

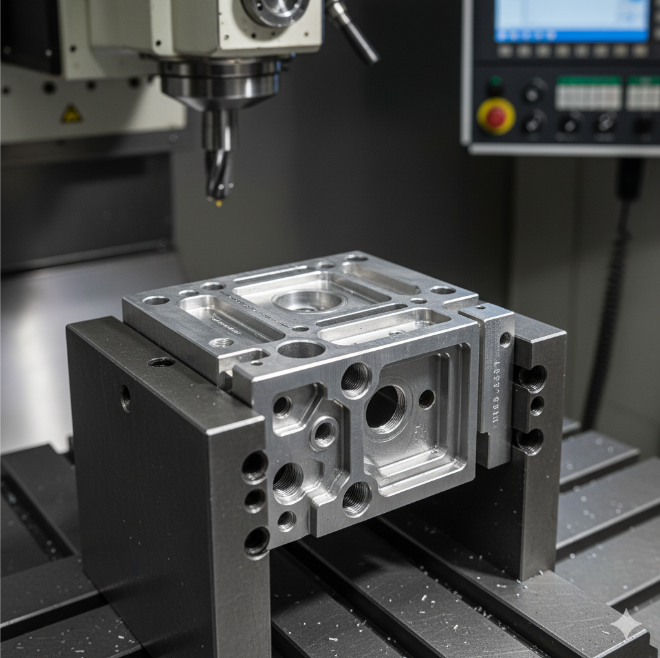

• Milling, conversely, involves rotating a multi-point cutting tool against a stationary workpiece. Imagine a sculptor using a power drill with a carving bit; the tool spins and moves to carve away material from a fixed block. A CNC milling machine uses rotating end mills or drills to cut flat surfaces, slots, grooves, and complex 3D contours. This is ideal for creating parts like engine blocks, brackets, and molds.

In short, the workpiece moves in turning; the tool moves in milling.

The Geometry of Parts: Which Process is Right for Your Project?

The choice between milling and turning is often dictated by the geometry of the part you need.

When to Choose Turning

Turning excels at creating axisymmetric parts—components that are symmetrical around a central axis. If you can describe your part's primary shape with a single rotated profile, turning is your best bet.

• Common Parts: Bushings, shafts, nuts, fittings, and flanges.

• Key Features: Concentric grooves, external and internal threads, tapered sections.

When to Choose Milling

CNC milling is your solution for complex, prismatic parts that require detailed features on multiple faces. It is the master of creating pockets, planes, and intricate contours.

• Common Parts: Electronic enclosures, gearbox housings, tooling plates, and surgical instruments.

• Key Features: Flat surfaces, threaded holes, complex 3D surfaces, and internal pockets.

Beyond the Basics: The Machines and Materials

Both processes have evolved significantly with Computer Numerical Control (CNC), which automates the movements for extreme precision and repeatability.

• Turning Equipment: The basic machine is a lathe. Advanced versions include CNC lathes and Swiss-type lathes, which are perfect for high-volume production of small, complex parts.

• Milling Equipment: The workhorse is the 3-axis vertical machining center (VMC). For more complex parts, 5-axis CNC mill-turn centers can approach the workpiece from virtually any direction in a single setup.

• Material Shape: This is a key differentiator. Turning typically starts with round bar stock, while milling and turning services often begin with rectangular blocks, plates, or billets for milling.

The Power of Convergence: What is a Mill-Turn Center?

For decades, a part requiring both turned and milled features would travel between a lathe and a milling machine, requiring multiple setups. This increased handling, potential for error, and lead time. The game-changing solution? The mill-turn center.

A mill-turn center, or a turn-mill center, is a hybrid machine that combines the capabilities of a lathe and a milling machine into a single, powerful unit. It allows a part to be completely finished in one clamping. The machine can rotate the part for turning operations and also use live, rotating tools to perform milling, drilling, and tapping—all without moving the part to another machine.

According to an industry overview by Thomasnet, the adoption of multi-tasking machines like mill-turn machining centers has dramatically improved manufacturing efficiency for complex components.

A Real-World Case: The Aerospace Fitting

Let's illustrate this with a story. An aerospace client needed a high-precision hydraulic fitting. The part required a perfectly cylindrical, threaded body (ideal for turning) but also had two flat-sided wrench flats and cross-drilled holes (which require milling). Using traditional methods, this part would need two separate machine setups.

Instead, we machined it on our CNC turn-mill center. The machine first turned the outer diameter and cut the threads. Then, using its live tooling, it paused the rotation and milled the wrench flats. Finally, it drilled the cross-hole. The entire part was completed in a single setup, ensuring perfect alignment between the turned and milled features and reducing production time by over 50%. This is the tangible benefit of advanced CNC milling and turning technology.

Milling and Turning: More Similar Than You Think

Despite their differences, milling and turning share core similarities that make them the backbone of modern manufacturing.

• CNC Precision: Both are predominantly CNC-driven, ensuring digital accuracy from the first part to the thousandth.

• Material Versatility: Both can efficiently process a wide range of materials, from metals like aluminum and stainless steel to plastics like PEEK and Delrin.

• Subtractive Nature: They are both subtractive manufacturing processes, meaning they create a part by removing material from a solid block.

How to Choose the Right Process for Your Part

So, how do you decide? Here’s a simple, actionable guide:

1. Analyze the Primary Geometry: Is the part predominantly cylindrical? Start with turning. Is it a blocky or complex 3D shape? Start with milling.

2. Identify Secondary Features: Does your cylindrical part have off-center holes or flat surfaces? You likely need a mill-turn machining center.

3. Consider Volume and Complexity: For high-volume, simple axisymmetric parts, a dedicated lathe is efficient. For low-volume, highly complex prototypes or parts, a 5-axis mill or a mill-turn center offers maximum flexibility.

4. Consult an Expert: When in doubt, talk to your manufacturing partner. At 91 MNS Tech, our engineers routinely analyze designs to recommend the most cost-effective and precise manufacturing strategy, whether it involves simple CNC milling and turning services or advanced multi-axis machining.

Conclusion: Two Processes, One Goal—Your Perfect Part

Milling and turning are not competing technologies; they are complementary pillars of precision engineering. Understanding their core principles empowers you to make smarter design and sourcing decisions. While milling carves out complex shapes from a stationary block, turning sculpts symmetrical forms from a spinning blank. And with the advent of the sophisticated CNC mill-turn center, the line between them blurs to create a seamless, highly efficient manufacturing solution for the most challenging components.

The right manufacturing partner doesn't just operate machines; they provide the expertise to select the perfect process—or combination of processes—to bring your vision to life with precision, efficiency, and reliability.
