Guide to Milling Machine Milling: Precision & Power

In the world of manufacturing, turning a solid block of raw material into a complex, functional part with micron-level accuracy is a daily challenge. How do you consistently create intricate slots, holes, and three-dimensional contours with flawless precision? The answer lies in one of the most versatile and fundamental manufacturing processes available today: milling machine milling. This subtractive manufacturing technique is the cornerstone of modern production, capable of shaping everything from simple brackets to mission-critical aerospace components. This guide will explore the definition of milling, its core advantages, the different types of equipment used, and the real-world applications where it truly excels.

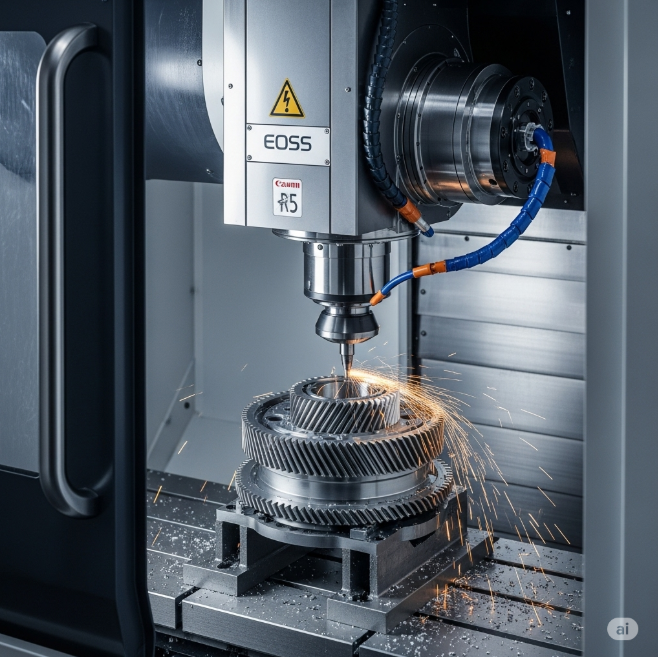

A 5-axis CNC milling machine performing a complex milling operation on a metal component.

What is the Milling Process? A Deeper Look

Imagine a sculptor meticulously carving a block of stone. The sculptor uses a sharp chisel to chip away material, slowly revealing the final shape. The milling process operates on a similar principle, but with far greater speed, power, and precision.

At its core, milling is a machining process that uses a rotating multi-point cutting tool to remove material from a stationary workpiece. Here’s a simple breakdown:

1. The Workpiece: The raw material (e.g., a block of aluminum, steel, or plastic) is securely clamped onto a movable table or fixture within the milling machine.

2. The Cutting Tool: A cylindrical tool with multiple sharp cutting edges, known as a milling cutter, is mounted in a spindle that rotates at high speed (hundreds or even thousands of revolutions per minute).

3. Material Removal: The machine moves either the table (with the workpiece) or the spindle (with the cutter) to feed the workpiece into the rotating tool. As the cutter's edges engage the material, they chip away small amounts, precisely shaping the part according to the design.

This controlled material removal allows us to create a vast array of features, including flat surfaces, deep pockets, narrow slots, and complex contours.

Core Advantages of Milling Machine Operations

Milling isn't just a widely used process; it's chosen for its distinct and measurable benefits that are critical for modern manufacturing. When you partner with a professional service, you leverage these key advantages:

• Exceptional Precision and Accuracy: Modern CNC mills (Computer Numerical Control) can achieve incredibly tight tolerances, often measured in micrometers. This level of accuracy is essential for parts that need to fit and function perfectly within a larger assembly.

• Design Versatility: The milling process is incredibly versatile. It can produce complex 2D and 3D geometries that would be impossible or prohibitively expensive to create with other methods. From simple drilled holes to intricate, flowing surfaces, milling can handle the challenge.

• Broad Material Compatibility: Milling machines are not limited to a single type of material. They can effectively machine a wide range of materials, including:

• Ferrous and non-ferrous metals (steel, aluminum, brass, titanium)

• Plastics and composites

• Wood and specialty materials

•


• High Efficiency and Repeatability: Once a program is created for a CNC mill, the machine can produce hundreds or thousands of identical parts with unparalleled consistency. This automation drastically reduces cycle times and labor costs, making it ideal for both prototyping and full-scale production runs.

At our facility, our advanced CNC machining services leverage these core advantages to deliver high-quality, precision components for clients across numerous industries.

Exploring the Main Types of Milling Machines

While the core principle of milling remains the same, the machines themselves come in various configurations, each designed for specific types of work. Understanding these types helps in choosing the right equipment for a job.

Vertical Milling Centers

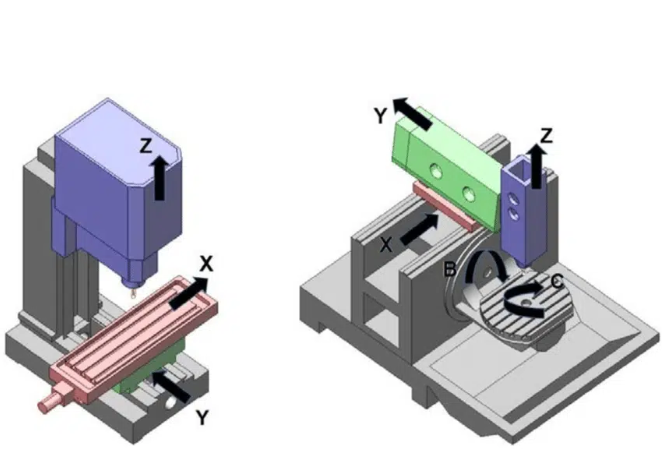

In a vertical mill, the spindle axis is oriented vertically. These are the most common type of milling machines found in workshops. The table moves in the X and Y axes, while the spindle moves up and down along the Z-axis.

• Best For: Creating pockets, slots, and drilled holes on a single face of a part. They are excellent for work on die-sinking and producing flat surfaces.

Horizontal Milling Centers

As the name suggests, the spindle on a horizontal mill is oriented horizontally. These machines are often more robust and can be equipped with multiple cutters at once on an arbor.

• Best For: Cutting heavier and longer workpieces. They excel at creating grooves and slots and are highly efficient for certain production jobs due to their ability to use larger cutting tools.

5-Axis Milling: The Pinnacle of Milling Machine Milling Technology

5-axis milling represents the pinnacle of milling machine milling technology. In addition to the three linear axes (X, Y, Z), these machines have two additional rotary axes (A and B or C). This allows the cutting tool to approach the workpiece from five different directions in a single setup.

• Best For: Machining highly complex and contoured parts, such as turbine impellers, medical implants, and automotive engine ports. It drastically reduces setup time and improves accuracy by eliminating the need to manually re-fixture the part.

For those interested in the deeper technical aspects of these technologies, authoritative resources like the Society of Manufacturing Engineers (SME) provide extensive research and publications on advanced manufacturing processes.
