Custom Plastic Machining: A Complete Design Guide

Imagine this: your design team has just finalized the prototype for a groundbreaking medical device. It’s complex, requires incredibly tight tolerances, and needs to be made from a specific, high-performance biocompatible plastic. Injection molding the initial low-volume run is prohibitively expensive and time-consuming. What’s your move? For countless engineers and procurement specialists, the answer is custom plastic machining.

This process is the unsung hero of rapid prototyping and low-to-medium volume production, offering unparalleled flexibility and precision. Companies that specialize in this field, like ours, have mastered the art of transforming digital designs into high-performance physical parts. This guide will walk you through everything you need to know—from material selection and processes to design tips that will save you time and money.

Why Choose Custom CNC Plastic Parts?

While injection molding is excellent for mass production, custom plastic machining shines where flexibility, speed, and precision are paramount. CNC (Computer Numerical Control) machining is a subtractive process, where a solid block of plastic (a blank) is shaped by cutting away material with high-speed rotary tools. This allows for incredible design freedom, making it perfect for:

• Prototyping: Quickly iterate and test designs without the need for expensive molds.

• Bridge Production: Fulfill market demand while your permanent molds are being fabricated.

• Low-Volume Production: Economically produce hundreds to thousands of parts.

• Parts with Complex Geometries: Create intricate features, tight tolerances, and excellent surface finishes that are difficult to achieve with other methods.

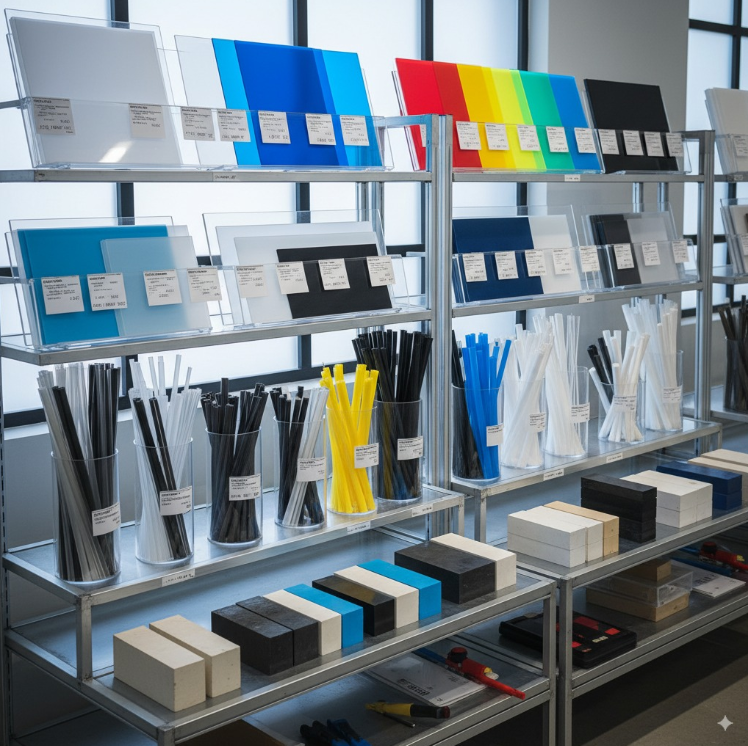

A World of Materials: Plastics We Expertly Machine

The choice of material is critical to the function, durability, and cost of your final part. Machining experts work with a vast array of engineering-grade thermoplastics, each with unique properties.

• Acetal (POM): Known for its high strength, stiffness, and excellent dimensional stability. Ideal for gears, bearings, and conveyor parts.

• Nylon (PA): Offers good wear resistance, high mechanical strength, and a low coefficient of friction. Common in automotive and aerospace components.

• PVC: Valued for its excellent chemical resistance and flame-retardant properties, often used in chemical processing and construction.

• Polycarbonate (PC): A favorite for its high impact strength and transparency, perfect for protective shields and lenses.

• PTFE (Teflon): The go-to for exceptional chemical resistance and the lowest coefficient of friction, used in seals and insulators.

• PEEK: A high-performance thermoplastic boasting incredible thermal stability, chemical resistance, and strength, making it suitable for the most demanding aerospace and medical applications.

Selecting the right material is a complex decision. Expert engineers can guide you through this process to ensure your custom machined plastic parts perform flawlessly in their intended environment. You can explore a detailed breakdown of material properties on our plastics machining capabilities page.

Unveiling the Process: How We Create Your Custom Plastic Parts

Modern machine shops utilize several precision machining techniques, often used in combination.

• CNC Milling: A rotating multi-point cutting tool moves along various axes to shape the workpiece. This is ideal for complex 3D contours, pockets, slots, and holes.

• CNC Turning: The workpiece is rotated on a spindle while a single-point cutting tool removes material. This is best for creating cylindrical or conical parts.

• Multi-Axis Machining: Advanced 3-axis, 4-axis, and 5-axis CNC machines can manipulate the part from multiple angles in a single setup. This allows for the production of highly complex geometries with incredible accuracy and efficiency.

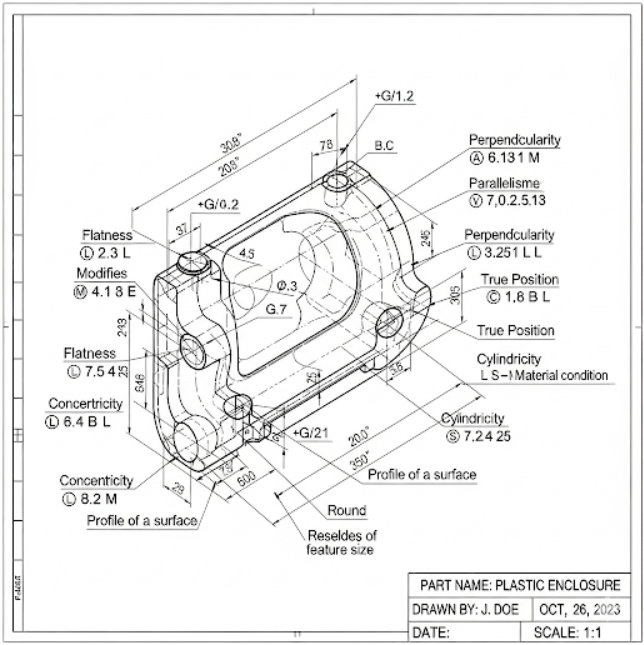

Designing for Success: DFM and Tolerance Tips for Plastic Machining

To ensure your project is cost-effective and manufacturable, Design for Manufacturability (DFM) is essential. Here are our top tips for optimizing your design:

1. Mind the Wall Thickness: Avoid very thin walls to prevent warping and breakage during machining. A minimum thickness of 0.5mm is a good starting point, but this varies by material.

2. Simplify Deep Cavities: Machining deep, narrow cavities can be challenging. Whenever possible, design with a more open geometry or consider splitting the part into multiple components.

3. Specify Tolerances Wisely: While machinists can hold extremely tight tolerances (as low as ±0.02mm for critical features), not every dimension needs to be that precise. Define critical tolerances clearly and allow standard tolerances (±0.1mm) for non-critical features to reduce cost.

4. Avoid Sharp Internal Corners: Cutting tools are round, so they will naturally create a radius in internal corners. Design with this in mind by adding necessary fillets.

5. Consider the Material Grain: Unlike metals, plastics can have a directionally dependent strength. Experienced machinists will orient the part in the blank to maximize strength where it’s needed most.

For a deeper dive into industry standards, the American Society of Mechanical Engineers (ASME) provides detailed guidelines on geometric dimensioning and tolerancing (GD&T).

Where Innovation Meets Application: Key Industries We Serve

The versatility of custom plastic machining means these parts find life in a diverse range of industries.

• Aerospace: Lightweight, strong, and flame-retardant components for interiors, sensors, and prototypes.

• Medical: Biocompatible, sterilizable parts for surgical instruments, diagnostic equipment, and drug delivery devices.

• Electronics: Insulating components, housings, and connectors with precise dielectric properties.

• Automotive: Durable, wear-resistant under-hood components, sensors, and interior prototypes.

• Consumer Goods: High-quality, aesthetically pleasing parts for everything from electronics enclosures to sporting goods.

Your Partner in Precision: Why Choose a Specialized Machining Provider

Choosing a manufacturing partner is about more than just machines; it’s about expertise, communication, and reliability. A strong partner provides comprehensive design for manufacturability analysis before any cutting begins, ensuring your project is optimized for success from the start. The goal is to deliver not just parts, but solutions that empower your innovation.

Conclusion: Turn Your Vision into Reality with Custom Plastic Machining

Navigating the world of custom plastic machining requires a blend of technical knowledge and practical experience. From selecting the right material like PEEK or Acetal to applying smart DFM principles for optimizing tolerances, every detail contributes to the success of your project. It’s a powerful solution for creating high-precision, functional prototypes and end-use parts without the lead time or cost of molding.

Ready to see how expert precision machining services can bring your most complex designs to life? Contact us today for a free quote and design review. Let's discuss your project and how our custom CNC plastic parts can drive your product’s success.

What challenges have you faced with plastic prototyping? Share your tips in the comments below!
