Countersinks: A Guide to Types, Materials & Flutes

Ever run your hand over a freshly assembled piece of furniture or a sleek metal panel and felt nothing but perfect smoothness? That seamless, professional quality doesn't happen by accident. Chances are, the secret ingredient is a small but indispensable tool: the countersink. For engineers, machinists, and serious DIYers, mastering countersink tools is the mark of a true professional.

Simply put, these tools carve out a perfect conical home for the head of a screw or bolt. Sure, it creates a clean, finished look, but the real magic is functional: a stronger joint and a safe, smooth edge, free from nasty burrs that can snag hands or materials. But when you're faced with a wall of options, how do you pick the right one for the job?

Don't worry, we've got you covered. Let's cut through the noise. We're going to dive into the essential types, explain why the right material and coating are your secret weapons, and finally, put the whole 'number of flutes' argument to rest. Let's get drilling.

Decoding the Designs: A Field Guide to Common Countersinks

Let's be clear: a countersink isn't just a countersink. Each design is a purpose-built solution for a specific material or task. Getting to know the main players is the first step toward mastering the craft.

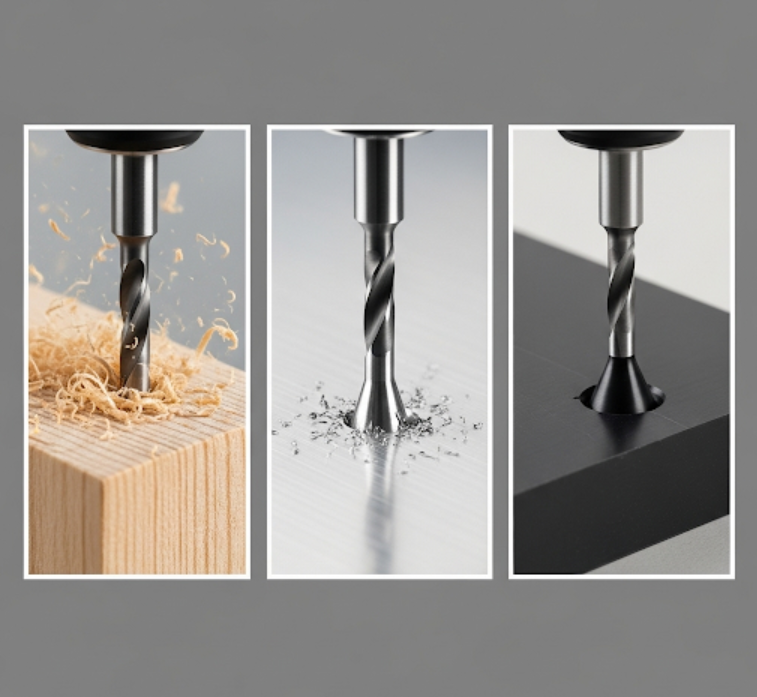

At its core, any countersink is designed to do one of three jobs:

1. Countersinking: Nesting a fastener head perfectly flush.

2. Deburring: Shaving off that sharp, messy edge left after drilling.

3. Chamfering: Creating a clean, beveled edge for a smooth lead-in.

Here are the designs you'll see most often out in the wild:

• Multi-Flute Tools (3, 4, 5, or 6 Flutes): This is the classic, old-school design. With multiple cutting edges (flutes) arranged on a cone, it's a workhorse. The catch? In a handheld drill, it can sometimes "chatter," leaving a rough, almost hexagonal finish instead of a perfect circle. For best results, lock it into a sturdy setup like a drill press or milling machine where it can really shine.

• Single-Flute Tools: Simple, elegant, and surprisingly effective. With just one cutting edge, there's a ton of room for chips to escape, which dramatically reduces clogging and chatter. This makes it a fantastic all-rounder, especially known for leaving a glass-smooth finish on plastics and non-ferrous metals like aluminum.

• Cross-Hole (or Zero-Flute) Tools: This is the clever one of the bunch. A hole is drilled right through the cone, creating a razor-sharp cutting edge. As it cuts, the waste material is whisked away through the hole. The result? An incredibly clean, chatter-free cut every single time. It's the undisputed champion of deburring. Explore our range of high-performance countersink tools.

And don't forget the angle! Matching the countersink angle to your fastener is non-negotiable. These standards are set by organizations like the American National Standards Institute (ANSI) to keep everything compatible. The common ones are:

• 82°: Your go-to for standard screws in the United States.

• 90°: The universal standard for metric screws.

• 60°: Mostly used for quick deburring jobs.

• 100° & 120°: You'll see these in specialized fields like aerospace for riveting thin sheets.

The Heart of the Matter: Why Materials and Coatings Are Crucial

Think of a countersink's material as its DNA—it dictates how tough it is, how long it will last, and what it can handle. Skimp on material, and you're signing up for dull edges, sloppy finishes, and constant trips to the supply store.

Here’s the breakdown of the most common material choices:

• High-Speed Steel (HSS): The reliable industry standard. HSS gets the job done on wood, plastics, and softer metals without breaking the bank.

• Cobalt Steel (HSS-Co): Think of this as HSS with a superpower. A dash of cobalt (usually 5-8%) lets the tool handle much higher temperatures, making it the perfect choice for chewing through tough stuff like stainless steel without losing its edge.

• Solid Carbide: When you need the absolute best, you go with carbide. It's incredibly hard and wear-resistant, offering the longest possible tool life, especially in automated, high-volume production. It's more brittle, though, so it demands a rock-solid machine setup.

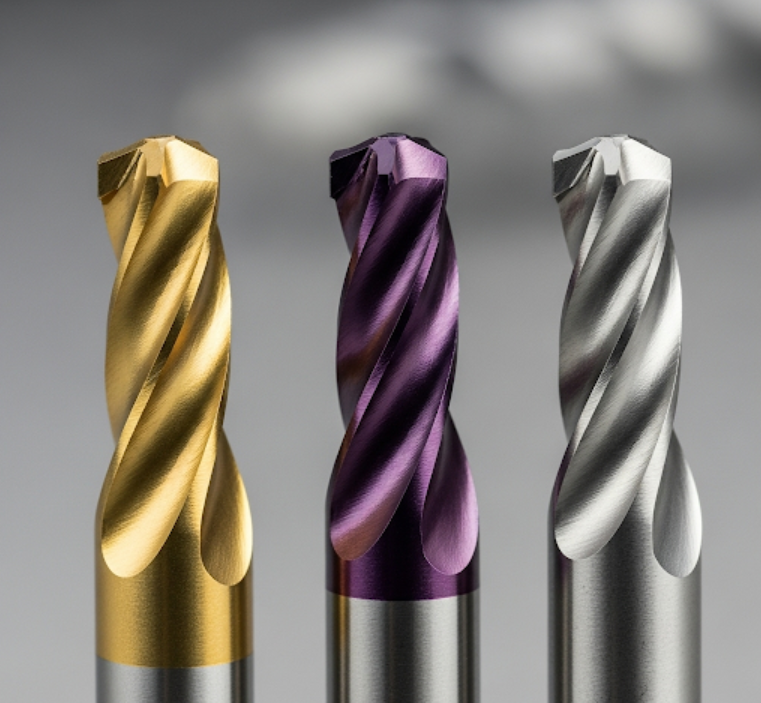

To push performance even further, many countersink tools come with specialized coatings:

• Titanium Nitride (TiN): That classic gold coating isn't just for looks. It adds hardness and acts like a permanent lubricant, giving the tool a longer life.

• Titanium Aluminum Nitride (TiAlN): This dark, violet-hued coating is a beast when it comes to heat. It’s built for high-speed cutting in materials that generate a lot of friction, like titanium and other superalloys.

• Diamond Coatings: For the absolute toughest, most abrasive materials out there—composites, fiberglass, ceramics—a diamond coating provides unmatched endurance.

At MNS TECH, we operate on a simple principle: great results demand great tools. There are no shortcuts. That's why our countersinks are machined from top-tier materials, giving you the clean cut and rock-solid durability you need to perform, job after job.

The Great Flute Debate: Do More Flutes Mean a Better Cut?

Walk into any machine shop and ask about the ideal number of flutes on a countersink, and you might just start a friendly argument. Does having more cutting edges guarantee a smoother result, or is less actually more? The honest answer from anyone who's spent time in the shop? It all comes down to your setup.

Single-flute countersinks are legendary for their smooth, chatter-free performance. That one cutting edge takes a clean, consistent slice, and the wide-open design means chips fly out without getting stuck. This is a huge advantage in "gummy" materials that produce long, stringy chips.

Multi-flute countersinks, on the other hand, can theoretically remove material faster since more edges are doing the work. The downside is that there's less room for those chips to go, and if the setup isn't perfectly rigid, you risk chatter. One flute might dig in a little more than the others, causing vibrations that spoil the finish.

So, here's the simple takeaway:

• Working with a handheld drill or just need to deburr holes? A cross-hole or single-flute is your best friend for a flawless, smooth finish.

• Running a high-precision job on a CNC machine or a sturdy drill press? A top-quality multi-flute countersink will perform beautifully once you dial in the right speeds and feeds.

If you're unsure which tool is best for your specific application, don't hesitate to contact our experts for a consultation.

Conclusion: Elevate Your Work from Good to Great

At the end of the day, paying attention to details like countersinks is what separates good craftsmanship from truly exceptional work. It’s a small step that makes a huge difference. By understanding the various designs, matching the material to the job, and picking the right flute count for your setup, you can guarantee every fastener sits perfectly and every hole is finished with pride. This isn't just about following the rules; it's about taking your projects to the next level.

Ready to give your next project that flawless, professional touch? Explore our comprehensive range of precision-engineered countersinks and find the perfect tool for your needs.

What are your pro tips for a perfect countersink? Drop your knowledge in the comments below!
