Beyond the Billet: Your Guide to Molded Metal Parts

In the world of manufacturing, the challenge is constant: create stronger, more intricate metal parts faster and more cost-effectively. For decades, the go-to solution was subtractive manufacturing—carving a part from a solid block of metal, like a sculptor revealing a statue from marble. But what if you could build the statue from the ground up, with near-limitless complexity and minimal waste? This is the revolutionary promise of molded metal technology, a process that is redefining what’s possible in component design and production for engineers and designers just like you.

This guide will walk you through everything you need to know, from the core principles to real-world applications, helping you decide if this innovative approach is the key to unlocking your next breakthrough product.

What Exactly is Molded Metal? Beyond Traditional Casting

When you hear "molding," you might think of plastics. However, molded metal applies a similar concept to high-strength alloys. Instead of pouring molten metal into a simple cast, it most often refers to a highly sophisticated process called Metal Injection Molding (MIM).

Think of MIM as the perfect marriage between the design freedom of plastic injection molding and the robust strength of traditional metal. It involves mixing fine metal powders with a polymer binder to create a feedstock that can be injection-molded just like plastic. This allows for the creation of incredibly complex, net-shape parts that would be impossibly expensive or downright unachievable with traditional CNC machining.

An illustrative diagram of the MIM process used to create complex metal injection molding parts.

The Magic Behind the Mold: The 4 Key Stages of MIM

The transformation from powder to a solid, high-density metal part is a marvel of materials science. While it seems complex, the process can be broken down into four distinct, highly controlled stages.

1. Feedstock Preparation: It all begins with powder. Microscopic metal powders—be it stainless steel, titanium, or copper—are thoroughly mixed with a proprietary blend of polymer binders. This creates a granulated, paste-like feedstock with the consistency of toothpaste, which is the essential material for the molding stage.

2. Injection Molding: The feedstock is heated and injected under high pressure into a precision-machined mold cavity. This is where the part’s geometry is born. When it cools, the part is ejected from the mold. At this stage, it's called a "green part," and it's fragile, oversized by about 20% to account for later shrinkage.

3. Debinding: Next, the majority of the polymer binder that held the metal particles together must be removed. This is typically done using solvents, thermal furnaces, or a combination of methods. The resulting part, now called a "brown part," is porous and extremely delicate, consisting mainly of the metal powder held together by a small amount of remaining binder.

4. Sintering: This is the final and most critical stage. The brown parts are placed in a high-temperature, atmospherically-controlled furnace. They are heated to just below the metal's melting point. At this extreme temperature, the metal particles fuse together, and the part densifies, shrinking to its final, precise dimensions. The result is a solid, high-density metal component with mechanical properties comparable to those of wrought materials.

Choosing Your Champion: Materials Suited for Metal Molding

One of the greatest strengths of the MIM injection molding process is its versatility with materials. A wide range of alloys can be used, allowing you to tailor the final part's properties—like strength, corrosion resistance, and thermal conductivity—to your exact needs.

Popular materials include:

• Stainless Steels (e.g., 316L, 17-4PH): Excellent for their corrosion resistance and strength, making them ideal for medical devices, marine hardware, and consumer products.

• Low-Alloy Steels (e.g., FN08, 4605): Known for their exceptional strength and wear resistance, often used in automotive and industrial applications.

• Titanium Alloys: Prized for their high strength-to-weight ratio and biocompatibility, perfect for aerospace components and medical implants.

• Copper: Chosen for its superior electrical and thermal conductivity in electronics and heat sink applications.

• Tool Steels & Superalloys: Used for specialty applications that require extreme hardness or performance at high temperatures.

From MPIF provides the industry-accepted standards for materials used in MIM, making it an invaluable tool for engineers specifying parts.

Why Should You Choose Molded Metal Parts? Key Advantages

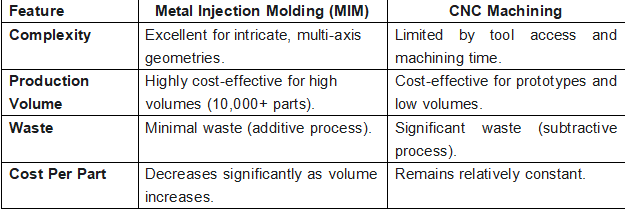

When does it make sense to choose MIM over a tried-and-true process like CNC machining? The answer lies in a combination of complexity, volume, and cost.
