Acrylic CNC Machining: A Guide to Flawless Parts

Have you ever held a perfectly clear acrylic part, one with edges so smooth they seem to disappear? That's the hallmark of expert acrylic CNC machining. It’s a process that transforms robust plastic sheets into precise components for everything from medical devices to dazzling displays. However, machining this material isn't as simple as cutting metal. One wrong move can lead to cracks, cloudy finishes, or melted edges.

But don't worry, mastering it is entirely possible. We're going to walk you through everything you need to know. From the inherent strengths of acrylic as a material to the hands-on techniques that guarantee a perfect finish, this guide will equip you with the knowledge to excel in your next project.

What is Acrylic, and Why is it a Machining Superstar?

Let's start with the basics. Acrylic, often known by brand names like Plexiglas or Lucite, is a versatile thermoplastic. Think of it as a stronger, more durable, and much more machinable alternative to glass. Its popularity in manufacturing isn't an accident; it's the result of a unique combination of properties that make it a favorite among engineers and designers.

Firstly, its optical clarity is outstanding. Acrylic can transmit up to 92% of light, even more than glass, making it ideal for lenses, light guides, and protective viewing windows. Secondly, it's incredibly strong and impact-resistant—up to 17 times more so than glass. This blend of clarity and durability is a powerful combination. Furthermore, it's lightweight, resistant to weathering, and available in a vast range of colors and thicknesses. When you pair these qualities with the precision of computer-controlled machining, you unlock incredible potential.

The Unbeatable Advantages of CNC Machining for Acrylic

Why choose CNC machining over other methods like laser cutting or injection molding for your acrylic parts? The answer lies in the unique benefits CNC offers.

• Supreme Precision and Complexity: CNC machining can create intricate 3D geometries, sharp details, and tight tolerances that are impossible with other methods. Imagine complex contours, precise threads, and subtle engravings, all achieved with microscopic accuracy.

• Exceptional Edge Quality: When performed correctly, milling and turning can produce edges that are ready for final polishing, often resulting in a clearer finish than the frosted edge left by a laser cutter.

• Material Integrity: CNC is a cold-cutting process. This means it doesn't generate the intense heat that can cause internal stress or micro-fractures in the material, preserving its inherent strength and clarity.

• Flexibility for Any Volume: Whether you need a one-off prototype or a full production run, a CNC machine delivers consistent, repeatable quality from the first part to the thousandth.

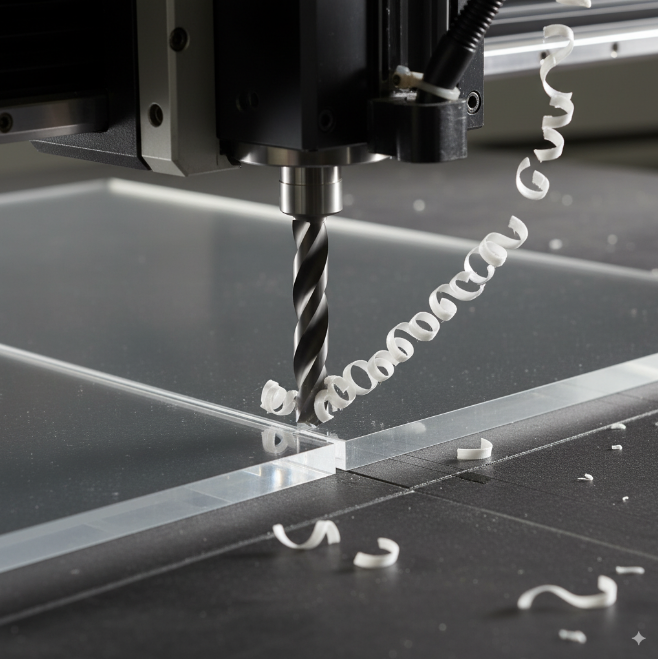

The Art and Science of the Machining Process: Key Techniques

Successful acrylic for CNC projects hinges on a few critical technical choices. The goal is always a clean cut that avoids heat buildup and material stress.

1. Tool Selection is King: Always use tools designed specifically for plastics. These feature a high polish, a sharp positive rake angle, and often only 2 or 3 flutes. This design ensures efficient chip removal, which is the key to preventing heat accumulation.

2. Master Feeds and Speeds: This is the heart of the process. Running the tool too slowly causes friction and heat, melting the acrylic. Running it too fast can cause chipping. The ideal setting produces a thin, continuous chip while keeping the tool and material cool.

3. Cooling and Chip Evacuation: Instead of traditional liquid coolants that can cloud acrylic, we use a steady stream of compressed air. This serves two purposes: it cools the cut and forcefully removes chips from the cutting path, preventing them from re-welding to the surface.

4. Secure, Gentle Workholding: Acrylic is stiff but can crack under stress. Using soft jaws and proper support prevents vibration and flexing during the machining process, ensuring a clean cut and preventing damage.

From Concept to Reality: Applications of Machined Acrylic Parts

The practical uses for precision-machined acrylic are nearly endless. Its unique properties make it a go-to material across diverse industries. Here are some common applications we see at our facility:

• Prototyping and Enclosures: Its machinability and clarity make it perfect for rapid prototypes and clear housing that allows engineers to inspect internal components.

• Medical and Laboratory Equipment: Used for fluidic chambers, diagnostic device windows, and surgical guides where biocompatibility, clarity, and the ability to be sterilized are crucial.

• Lighting and Optics: LED light guides, lenses, and diffusers leverage acrylic's excellent light transmission properties for efficient and even lighting.

• High-End Signage and Displays: From museum exhibits to retail point-of-sale displays, machined acrylic offers a premium, durable aesthetic.

• Aerospace and Automotive: Interior components, light covers, and instrument panels benefit from its light weight, strength, and optical qualities.

According to a material selection guide from Omnexus, acrylic's surface hardness and weathering resistance make it suitable for long-term outdoor exposure.

Designing for Success: Pro Tips for CNC Acrylic Parts

A great design is the first step toward a flawless part. By keeping manufacturability in mind from the start, you can avoid common pitfalls and reduce costs.

• Incorporate Radii in Internal Corners: Since cutting tools are round, they cannot create perfectly sharp internal corners. Designing with fillets that match standard tool sizes is essential.

• Maintain Minimum Wall Thickness: Excessively thin walls can vibrate or break during machining. Designing with robust wall thickness ensures structural integrity.

• Specify Tolerances Strategically: While CNC machining acrylic is highly precise, holding extremely tight tolerances on every feature increases cost. Apply critical tolerances only where functionally necessary.

By keeping these design principles in mind, you can significantly improve the quality and cost-effectiveness of your final parts.

Achieving Perfection: The Magic of Post-Machining Finishing

The journey doesn't end when the machining is complete. The right finishing technique can elevate a good part to an exceptional one. For acrylic, the goal is often a brilliant, polished look.

• Sanding: This is the first step. A progressive wet sanding process, using finer grits (from 400 to 2000+), removes all visible tool marks and prepares the surface for polishing.

• Polishing: Using a specialized polishing compound and a buffing wheel, the surface is brought to a high-gloss, optical clarity. This requires a skilled hand to avoid generating excessive heat.

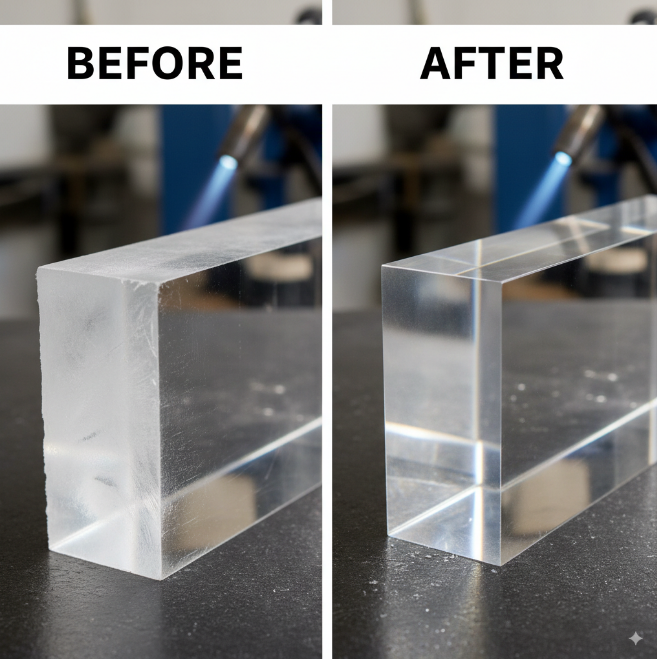

• Flame Polishing: For edges, a carefully controlled flame can quickly melt the surface layer, creating a perfectly clear, glass-like finish. This is a specialist technique that delivers stunning results.

Why Partner with an Expert for Your Acrylic CNC Machining Needs?

As you can see, achieving perfect results with acrylic CNC machining requires a deep understanding of the material, precise tooling, and meticulous process control. Partnering with an experienced manufacturer like 91MNS Tech ensures that your project benefits from this expertise from day one.

We have the specialized knowledge to select the right tools, optimize machining parameters, and apply the perfect finishing touches to meet your exact specifications. We don't just make parts; we provide solutions that bring your designs to life with precision and clarity.

Ready to Start Your Project?

Leveraging expert acrylic CNC machining is the key to creating high-quality, durable, and visually stunning components. Whether you're finalizing a design or ready to begin production, we're here to help.

Let's create something amazing together. Contact our team today for a free, no-obligation quote and design for manufacturability feedback.

What’s the most challenging acrylic part you’ve ever designed or machined? Share your story in the comments below.
