A Guide to Precision Metal Milling Processes

Have you ever wondered how the intricate metal parts in everything from your car to your smartphone are made? The answer often lies in a precise and versatile manufacturing process known as metal milling. For engineers, designers, and procurement managers, understanding the fundamentals of this technology is not just beneficial—it's essential for making informed decisions that drive innovation and efficiency. This guide will walk you through everything you need to know about the CNC machining process, from its core principles to its wide-ranging applications.

At its heart, CNC metal milling is a subtractive manufacturing process. This means it involves systematically removing material from a solid block (the workpiece) to create a desired shape or feature. A milling machine uses a rotating cylindrical tool with multiple cutting edges to shear away layers of metal with incredible accuracy. Whether you're working with aluminum, titanium, or specialized alloys, mastering the art of milling is key to producing high-quality, functional parts.

The Metal Milling Process: From Digital Design to Physical Part

The journey from a digital concept to a tangible metal component is a fascinating one, marked by precision at every step. The modern CNC metal milling process blends sophisticated software with powerful machinery to achieve results that would be impossible by hand.

1. The Design Phase (CAD): It all starts with a 2D or 3D computer-aided design (CAD) model. This digital blueprint contains every detail of the final part, from its dimensions to its surface finish requirements.

2. The Programming Phase (CAM): Next, computer-aided manufacturing (CAM) software translates the CAD model into a set of instructions, called G-code, that the milling machine can understand. This code dictates the tool's path, its rotational speed, the feed rate, and other critical parameters.

3. Machine Setup: Before cutting begins, a skilled machinist secures the workpiece onto the machine's table and loads the appropriate cutting tools into the machine's spindle. This setup phase is crucial, as even a minor misalignment can impact the final part's accuracy.

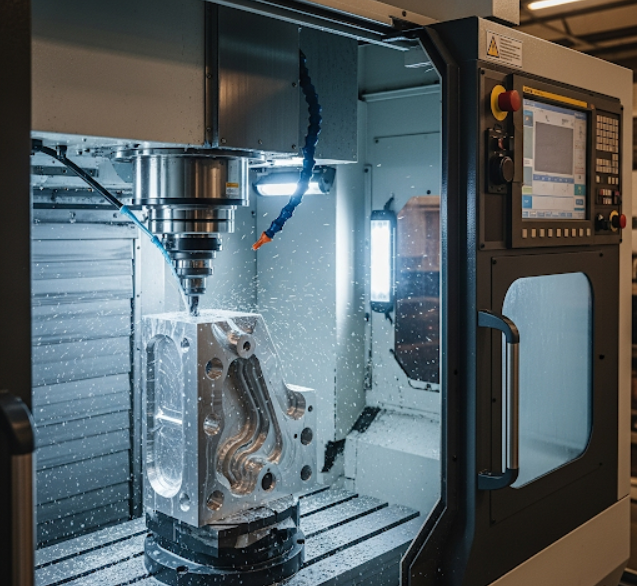

4. The Milling Operation: With the program loaded and the setup complete, the machine begins the milling process. The rotating tool moves along multiple axes (typically 3 to 5) to cut away material, following the G-code instructions precisely. Coolant is often used to lubricate the cutting tool, reduce heat, and flush away chips, ensuring a clean cut and prolonging tool life.

5. Finishing and Inspection: After the primary milling is done, the part may undergo secondary processes like deburring, polishing, or anodizing to meet final specifications. Finally, a thorough quality inspection using tools like calipers or coordinate measuring machines (CMMs) verifies that the part meets all dimensional tolerances.

Exploring the Different Types of Milling Operations for Metal

CNC machining metal is not a one-size-fits-all process. Different operations are used to create different features, and understanding them is key to optimizing any project. The two primary categories are face milling and peripheral milling.

• Face Milling: In this operation, the cutting edges are on the face of the milling tool. It's used to create flat surfaces and contours on the workpiece. Think of it as "shaving" the top layer of the metal to achieve a smooth, flat finish. It's ideal for creating the foundational surfaces of a part.

• Peripheral Milling (or Plain Milling): Here, the cutting teeth are located on the periphery of the tool. Peripheral milling is used to cut deep slots, threads, and gear teeth. Operations like steel milling for creating robust machinery components often rely heavily on this technique.

Beyond these two, several specialized milling operations exist:

• Slab Milling: Using a wide cylindrical cutter to machine a large, flat surface in a single pass.

• Slot Milling (or Slotting): Creating narrow grooves or channels in a workpiece, essential for parts that need to fit together.

• Form Milling: Employing specially shaped cutters to produce parts with curved surfaces, such as gears or decorative elements. For more on the specifics of gear manufacturing, you can explore this in-depth guide on how gears work.

Key Applications of CNC Milling

The precision, versatility, and repeatability of CNC machining metal have made it indispensable across countless industries. Its ability to work with a wide range of materials, from aluminum to hardened mill steel, means its applications are nearly limitless.

• Aerospace: The aerospace industry demands parts with extreme precision and strength-to-weight ratios. Custom metal milling is used to create everything from engine components and turbine blades to structural brackets and landing gear parts.

• Automotive: From engine blocks and transmission components to custom prototypes for new vehicle designs, the automotive sector relies heavily on milling. The ability to perform sheet metal milling is also crucial for creating body panels and chassis components.

• Medical: Medical devices and implants often feature complex geometries and must be made from biocompatible materials like titanium. CNC milling provides the required precision for surgical instruments, orthopedic implants, and custom prosthetics.

• Electronics: In the electronics industry, milling is used to create enclosures, heat sinks, and connectors. The process is perfect for producing the small, intricate metal parts that house and protect delicate electronic components.

• Prototyping: Before committing to mass production, companies need to test their designs. Metal milling is an excellent method for creating high-fidelity functional prototypes that can be tested in real-world conditions. For a look at our prototyping capabilities, explore our CNC Machining Services.

Choosing the Right Partner for Your Metal Milling Needs

The success of any project hinges on the quality of the machined parts. Therefore, selecting the right manufacturing partner is a critical decision. A good partner doesn't just have state-of-the-art equipment; they have the expertise to help you optimize your design for manufacturability, select the right materials, and ensure every part meets your exact specifications. They understand the nuances of working with different mill metals and can advise on the best approach for your specific application.

When evaluating a potential partner, consider their experience, their quality control processes, and their ability to handle the complexity and scale of your project. Whether you need a one-off prototype or a full production run, working with a team of experts ensures you get the best possible results.

The Future of Milling Metals

The field of milling metals is constantly evolving. Advances in machine technology, cutting tool materials, and CAM software are pushing the boundaries of what's possible. Five-axis milling machines are becoming more common, allowing for the creation of incredibly complex geometries in a single setup. Furthermore, the integration of automation and artificial intelligence is leading to "smarter" machining processes that can self-correct and optimize for efficiency. As technology continues to advance, we can expect CNC milling of steel and other alloys to become even more precise, efficient, and integral to the world of modern manufacturing.

Are you ready to bring your designs to life with precision and quality?

Contact us today to discuss your next custom metal milling project and discover how our expertise can help you succeed.
